ADU

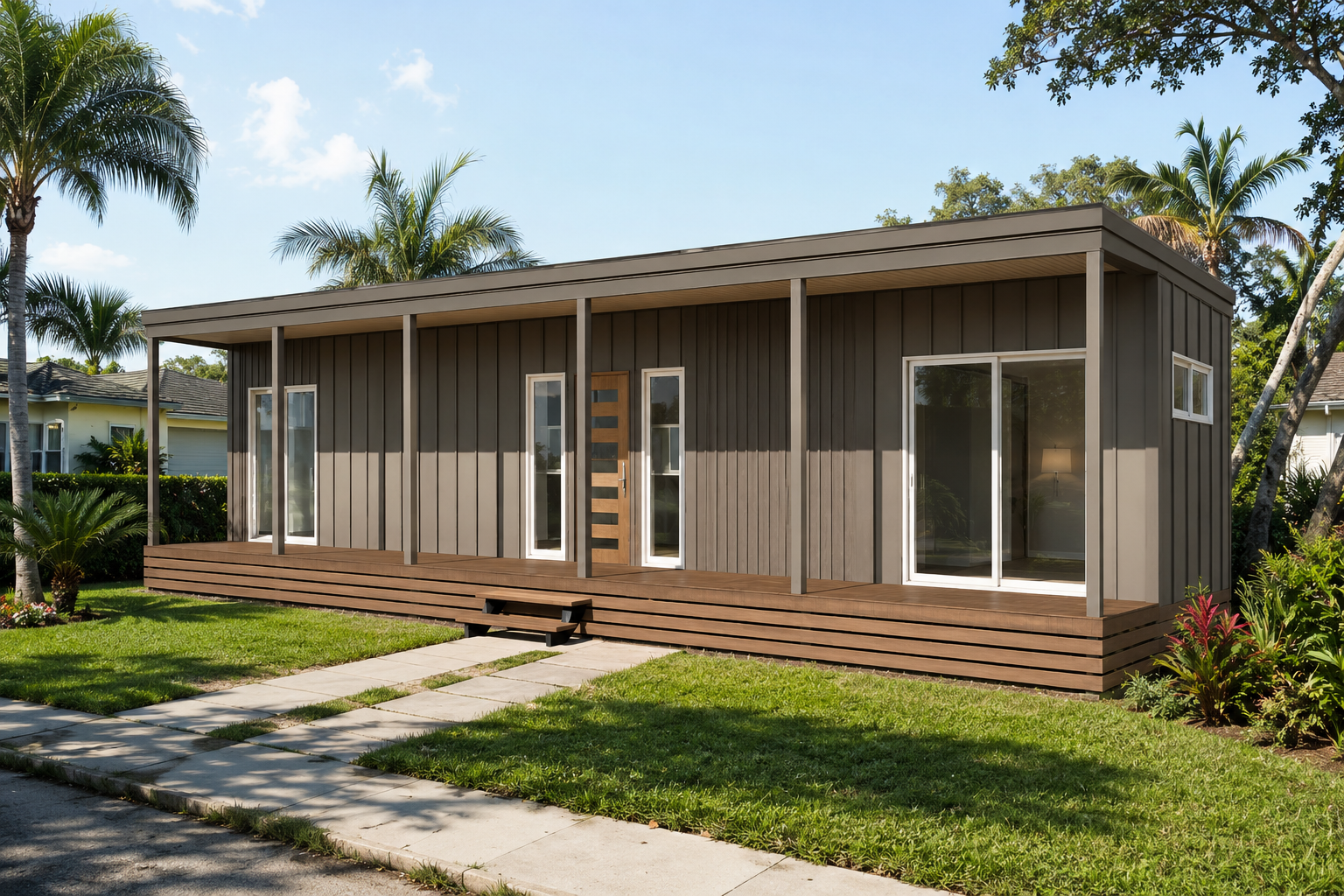

The Yarra

The Yarra boasts an expansive 49 ft 3 in x 13 ft 9 in layout, offering two bedrooms and a modern bathroom.

Sleeps

Bedrooms

Bathroom

678 sq ft

Floor Area

The Design

About the Yarra

The Yarra boasts an expansive 49 ft 3 in x 13 ft 9 in layout, offering two bedrooms and a modern bathroom. This flat combines space and elegance, making it perfect for comfortable living or rental purposes.

Get Instant Pricing Full Architectural Drawings Inquire about the Yarra

Gallery

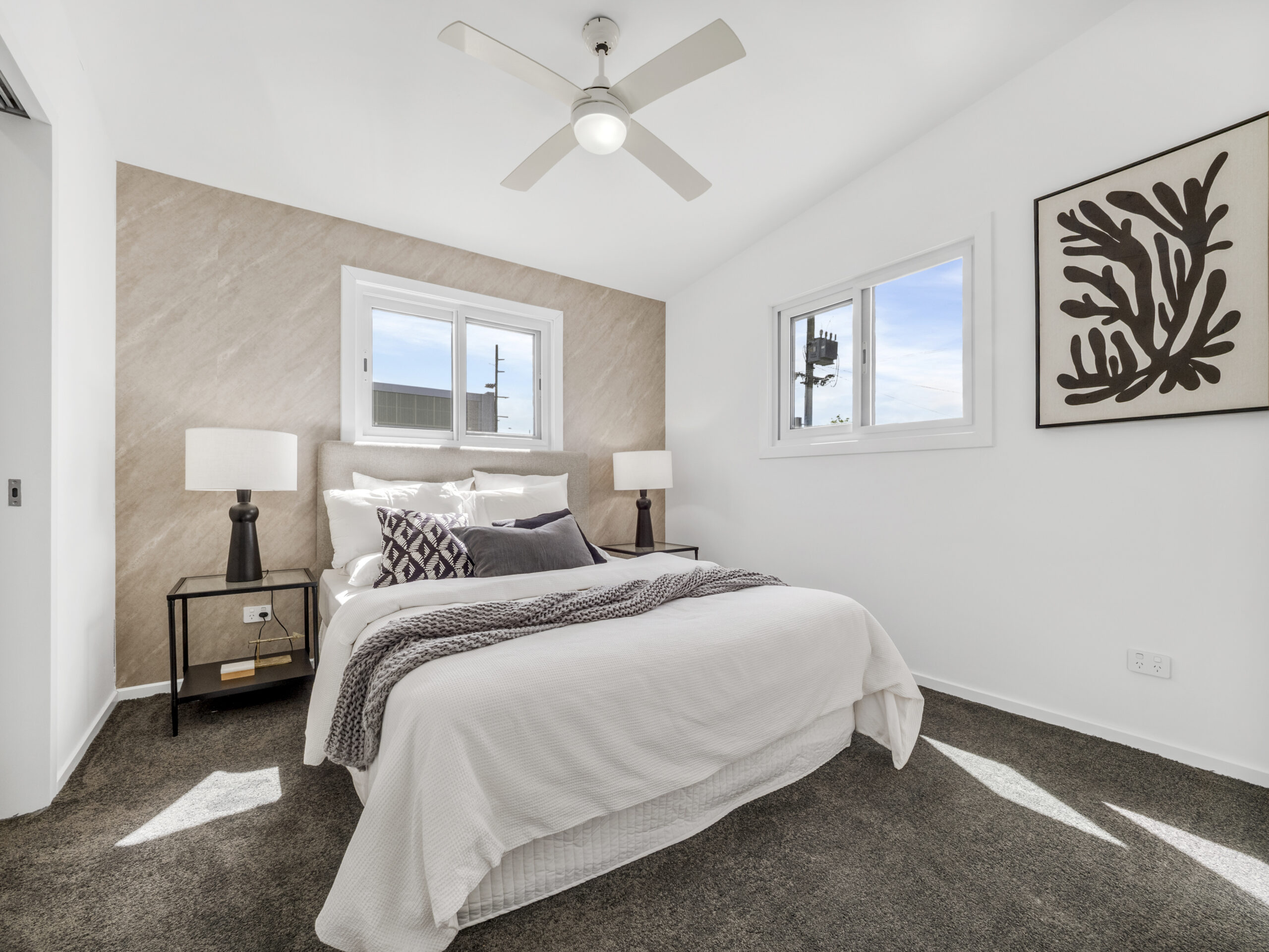

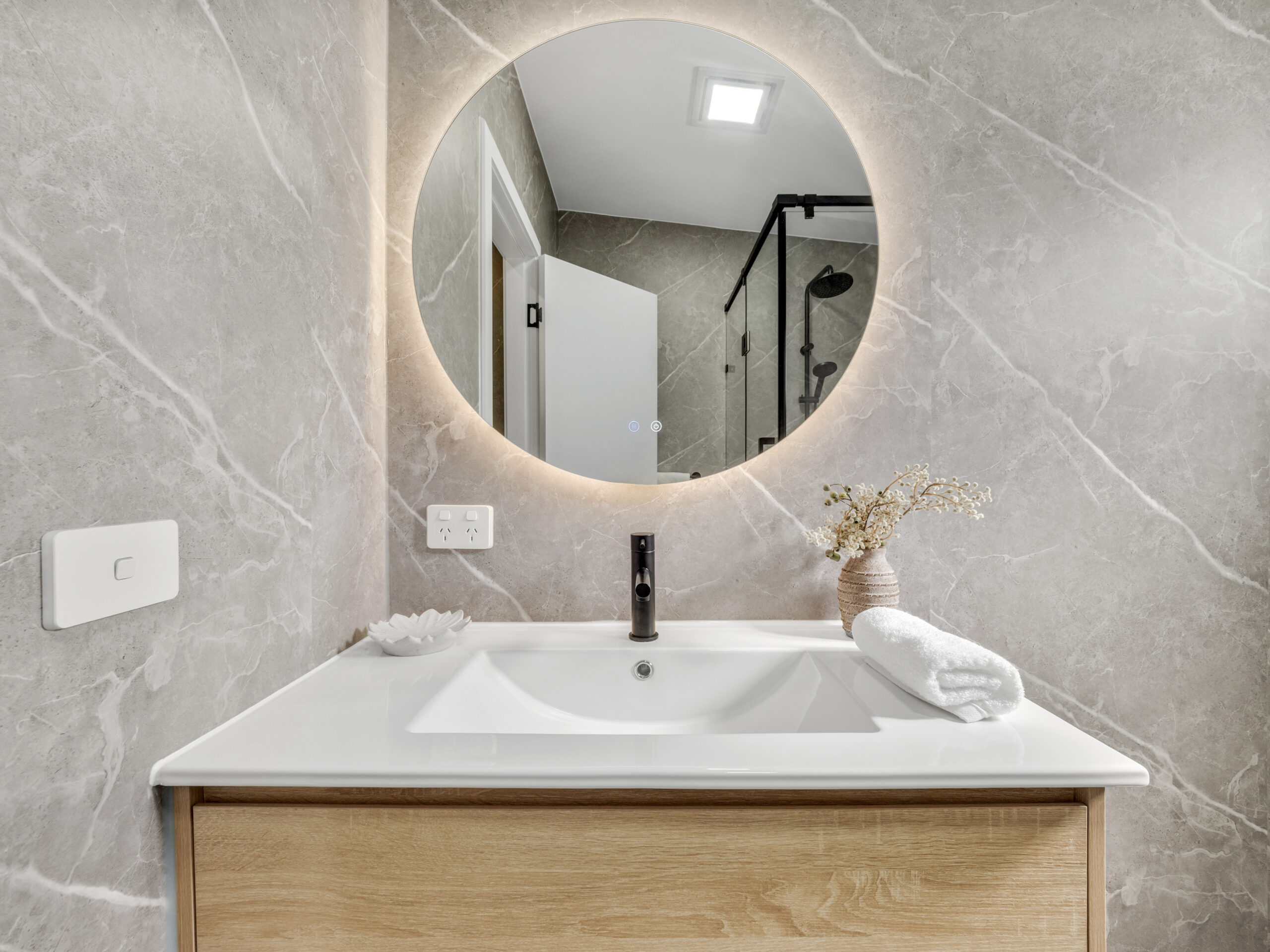

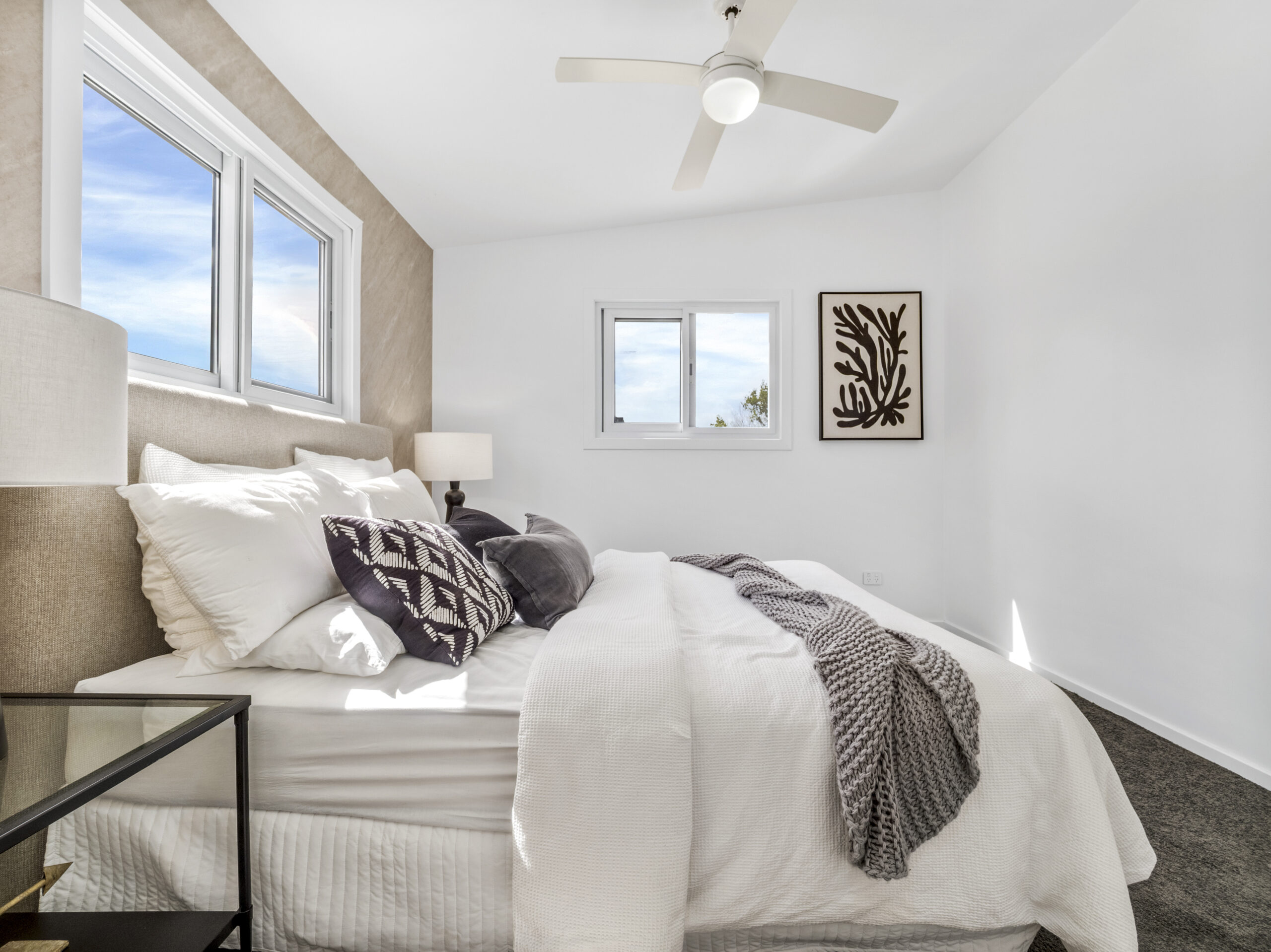

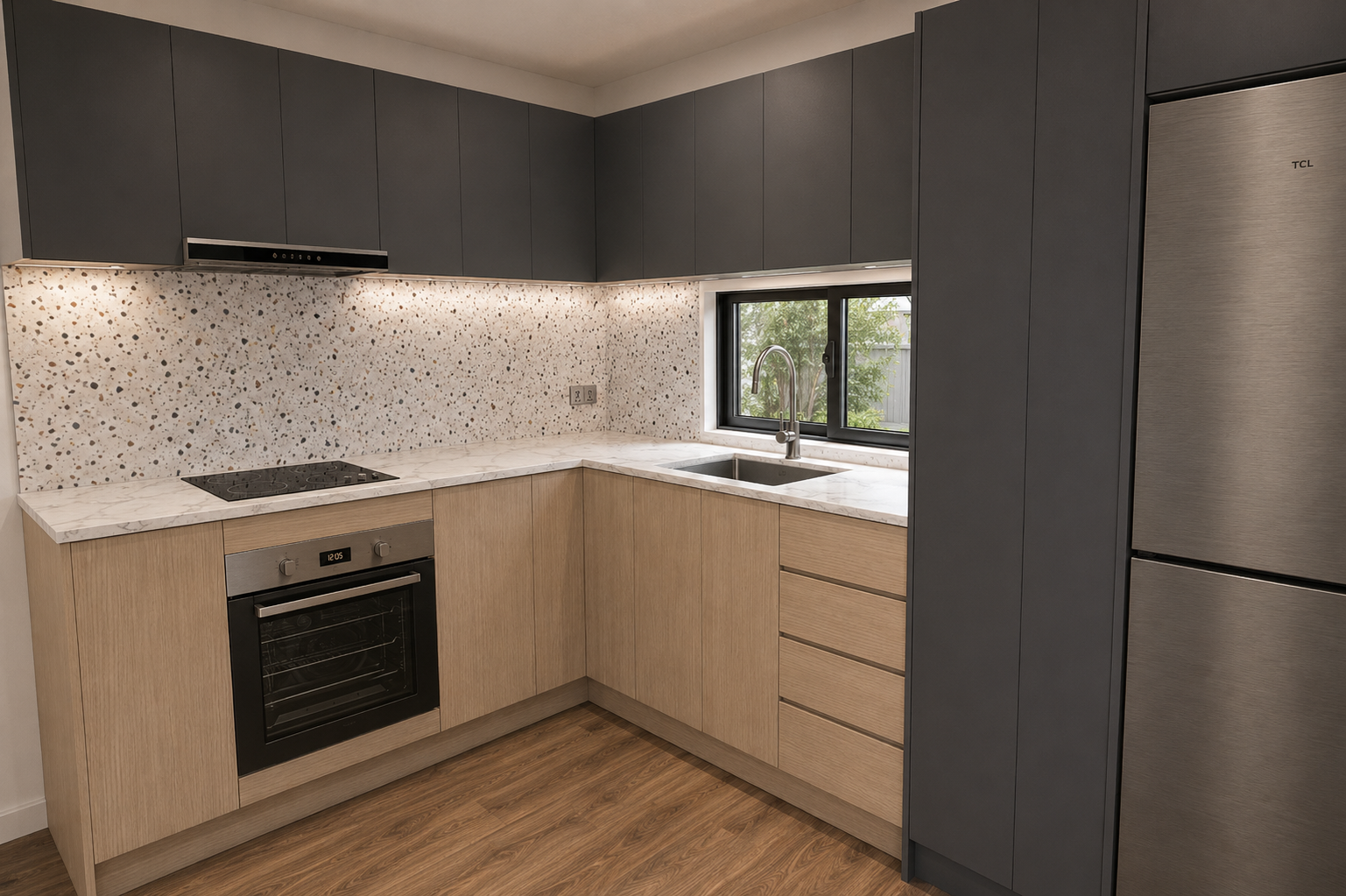

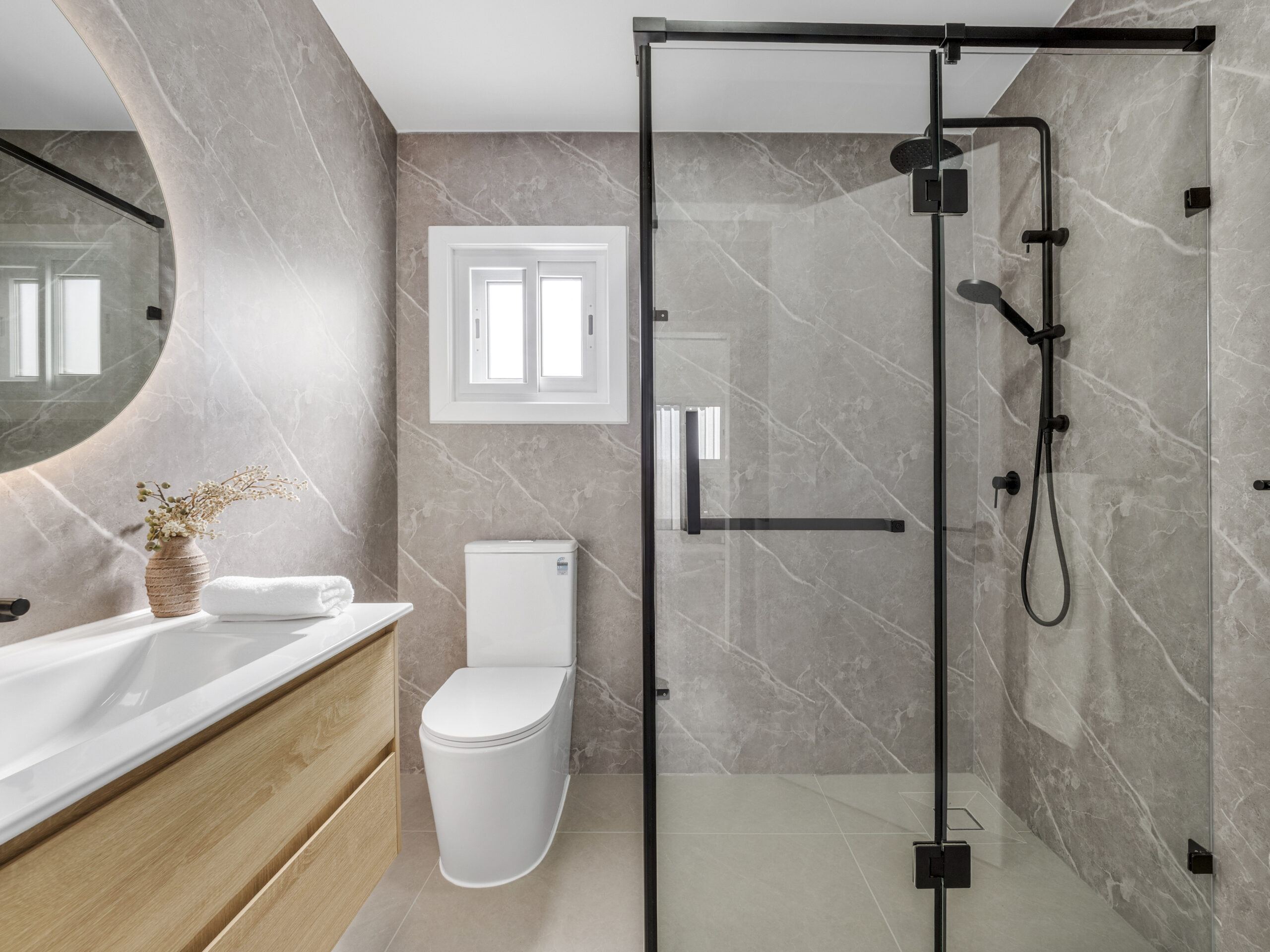

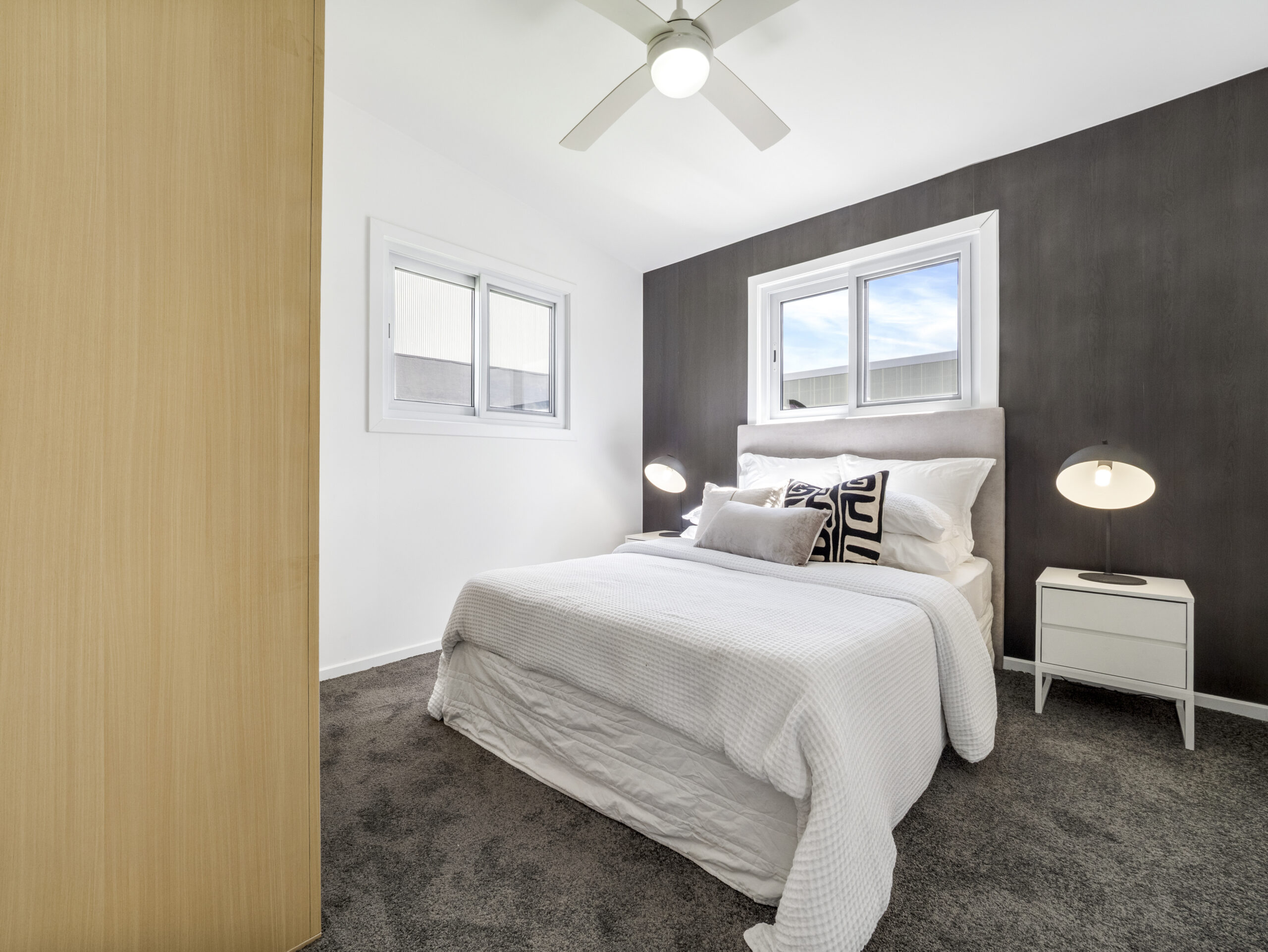

Inside the Yarra

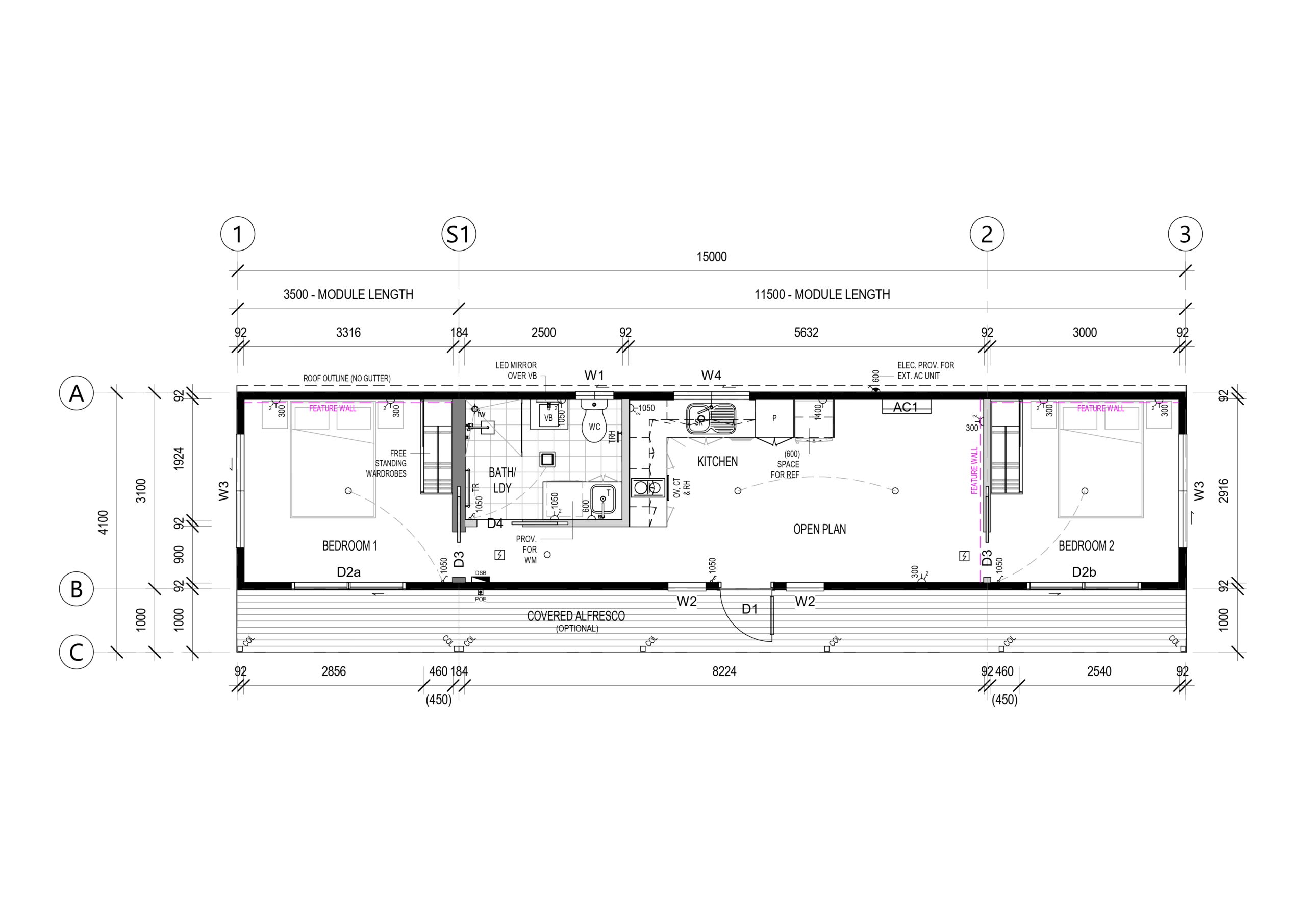

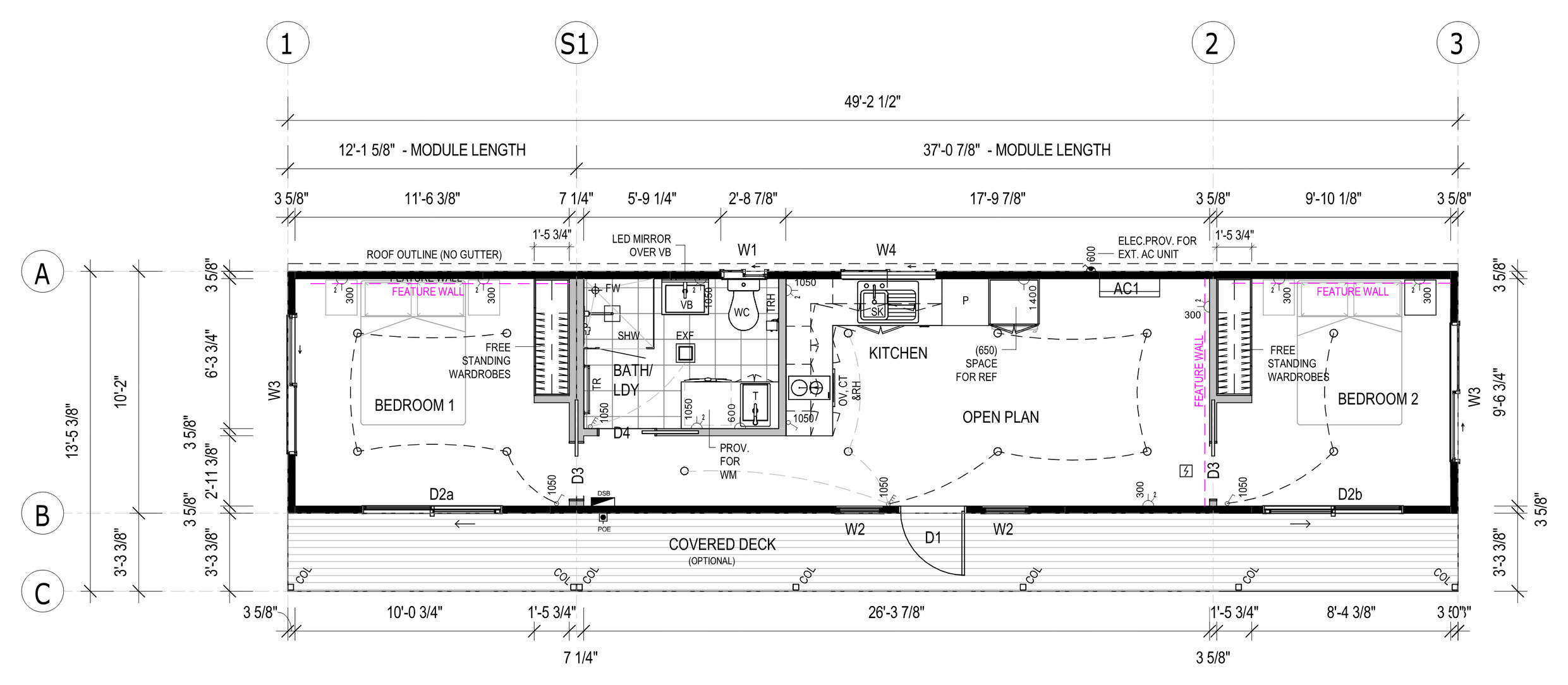

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 4 in x 16 ga lipped channel joists @ 18 in on center
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 3-5/8 in (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
