ADU

The Waratah

The Waratah offers the perfect blend of comfort and elegance in a sleek 32 ft 10 in x 13 ft 9 in footprint.

Sleeps

Bedroom

Bathroom

451 sq ft

Floor Area

The Design

About the Waratah

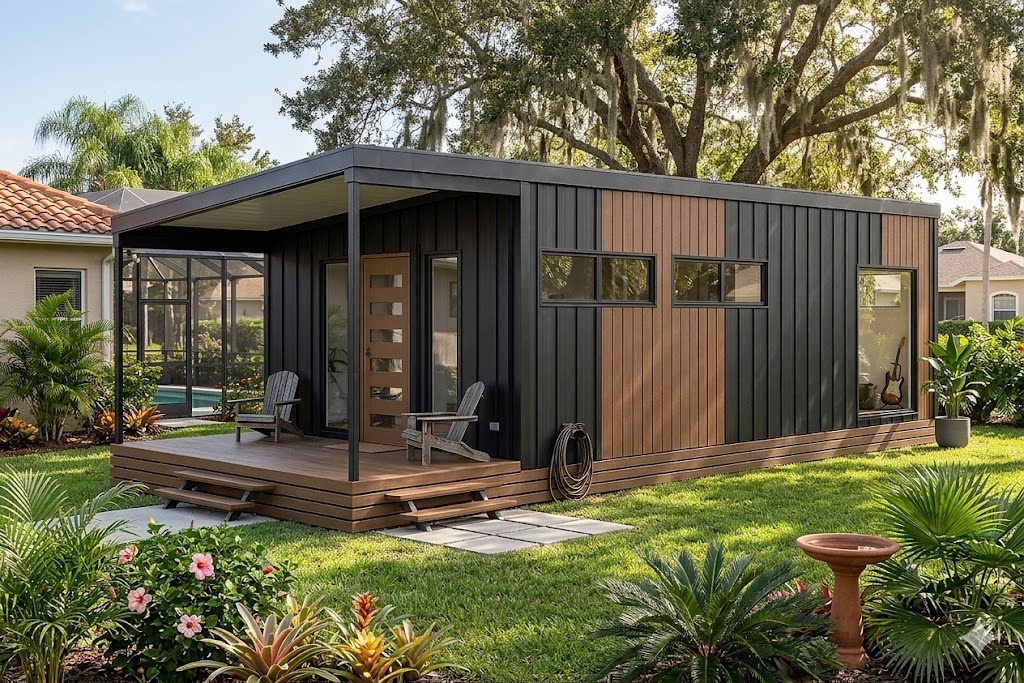

The Waratah offers the perfect blend of comfort and elegance in a sleek 32 ft 10 in x 13 ft 9 in footprint. Designed with modern living in mind, this one-bedroom modular ADU features a built-in covered patio area ideal for outdoor entertaining, a full-size kitchen with contemporary finishes, and a designer-style living room that maximizes space and natural light. Whether you’re accommodating family, downsizing, or creating an investment opportunity, The Waratah delivers style, practicality, and lasting value in one beautifully crafted home.

Get Instant Pricing Full Architectural Drawings Inquire about the Waratah

Gallery

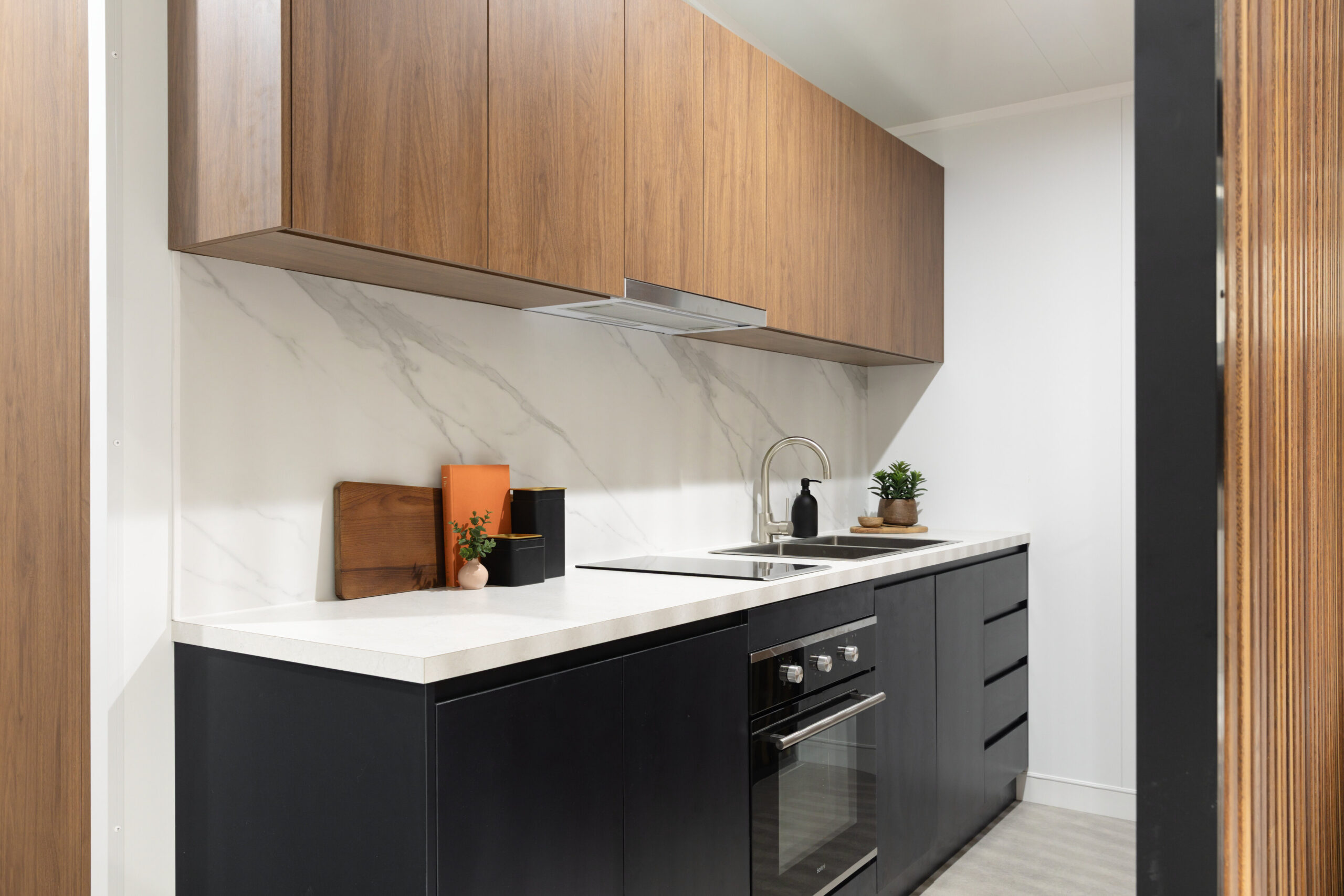

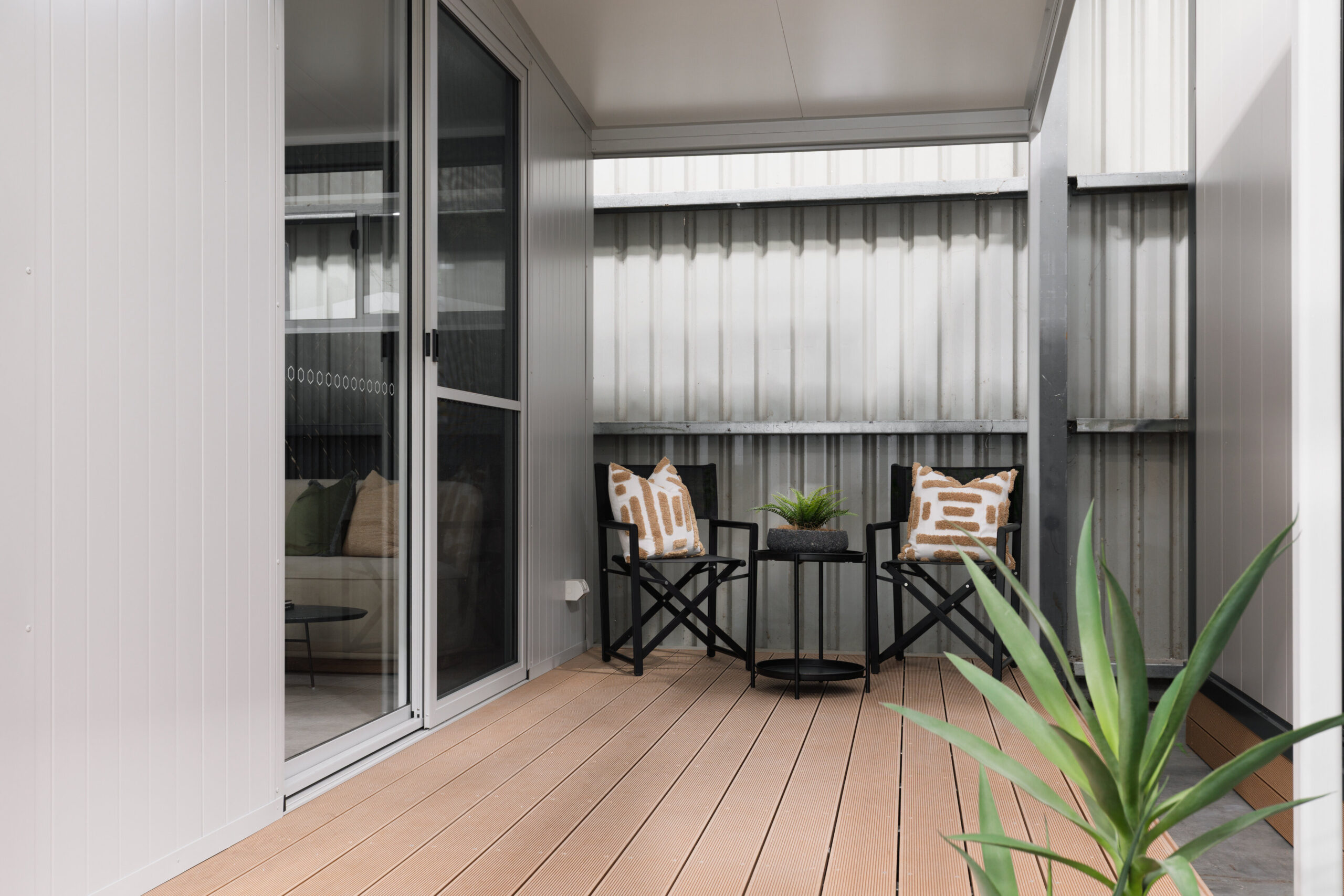

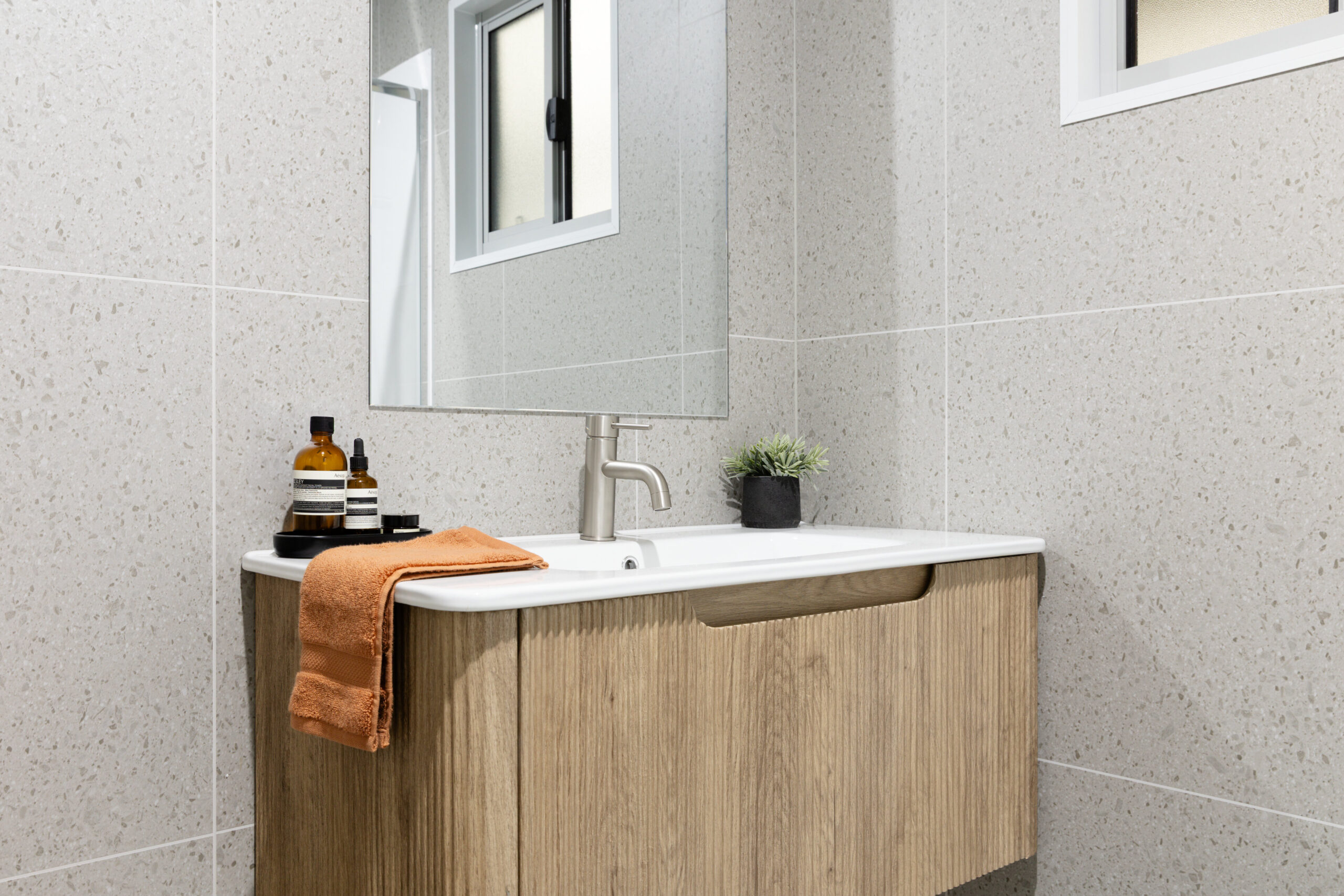

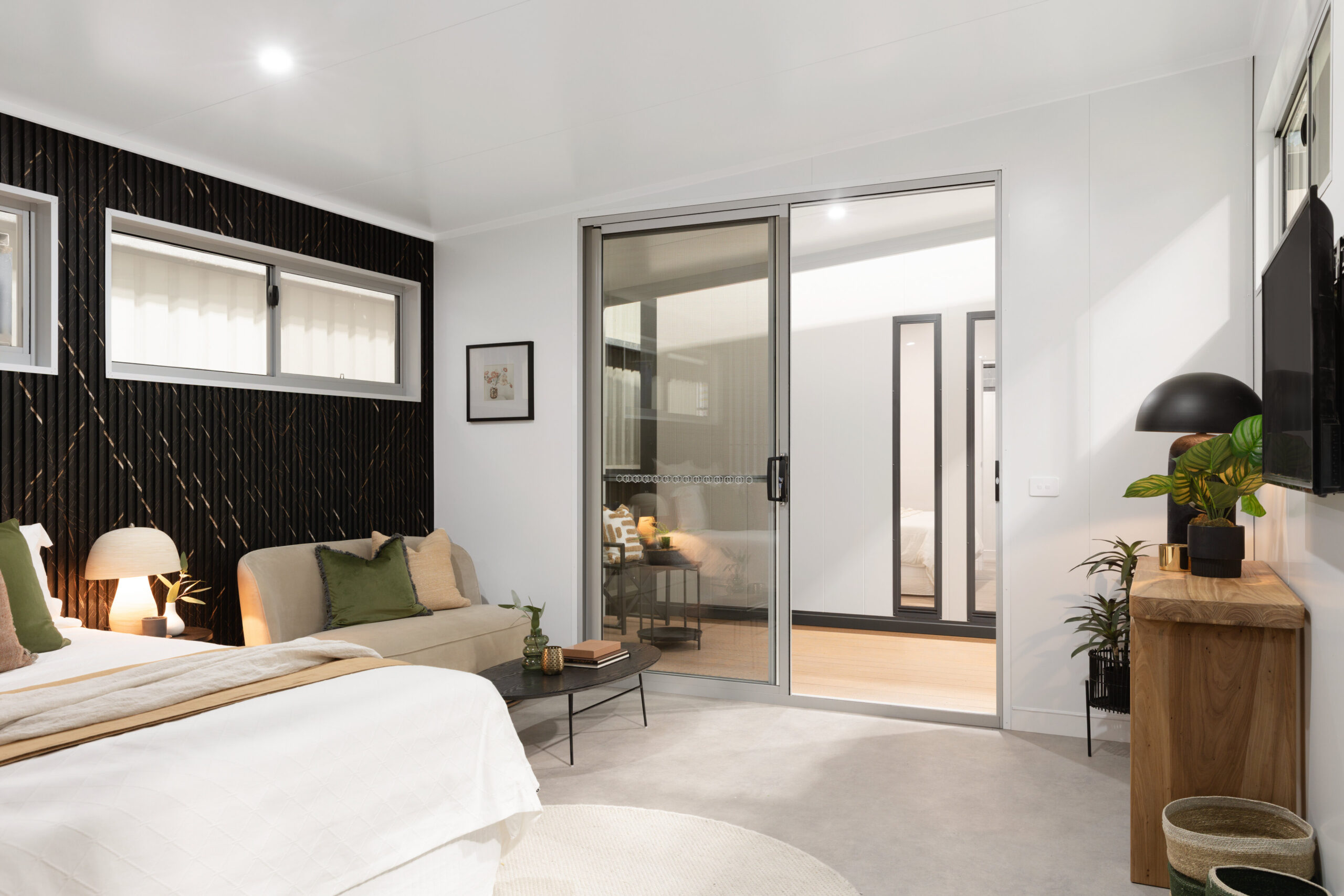

Inside the Waratah

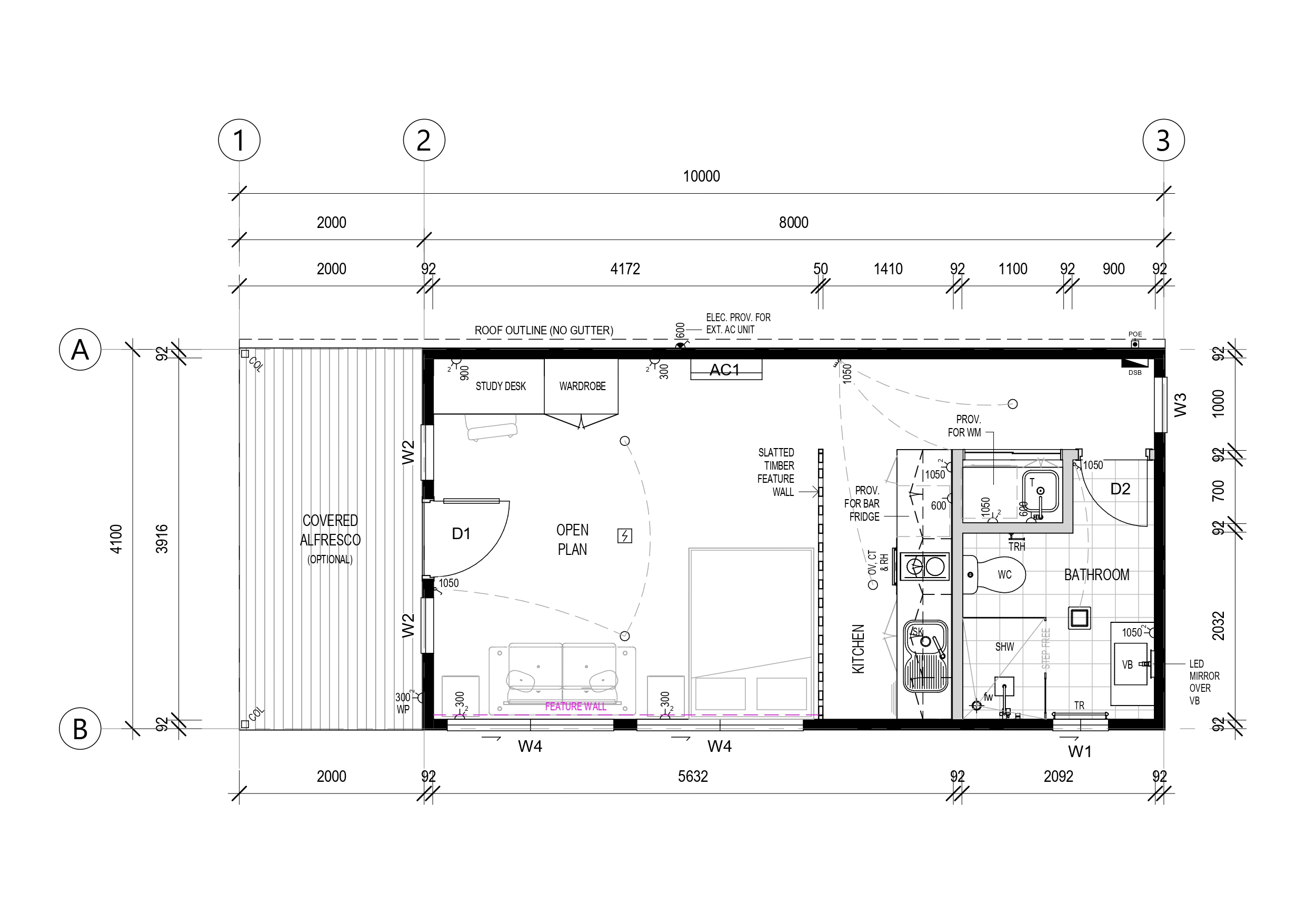

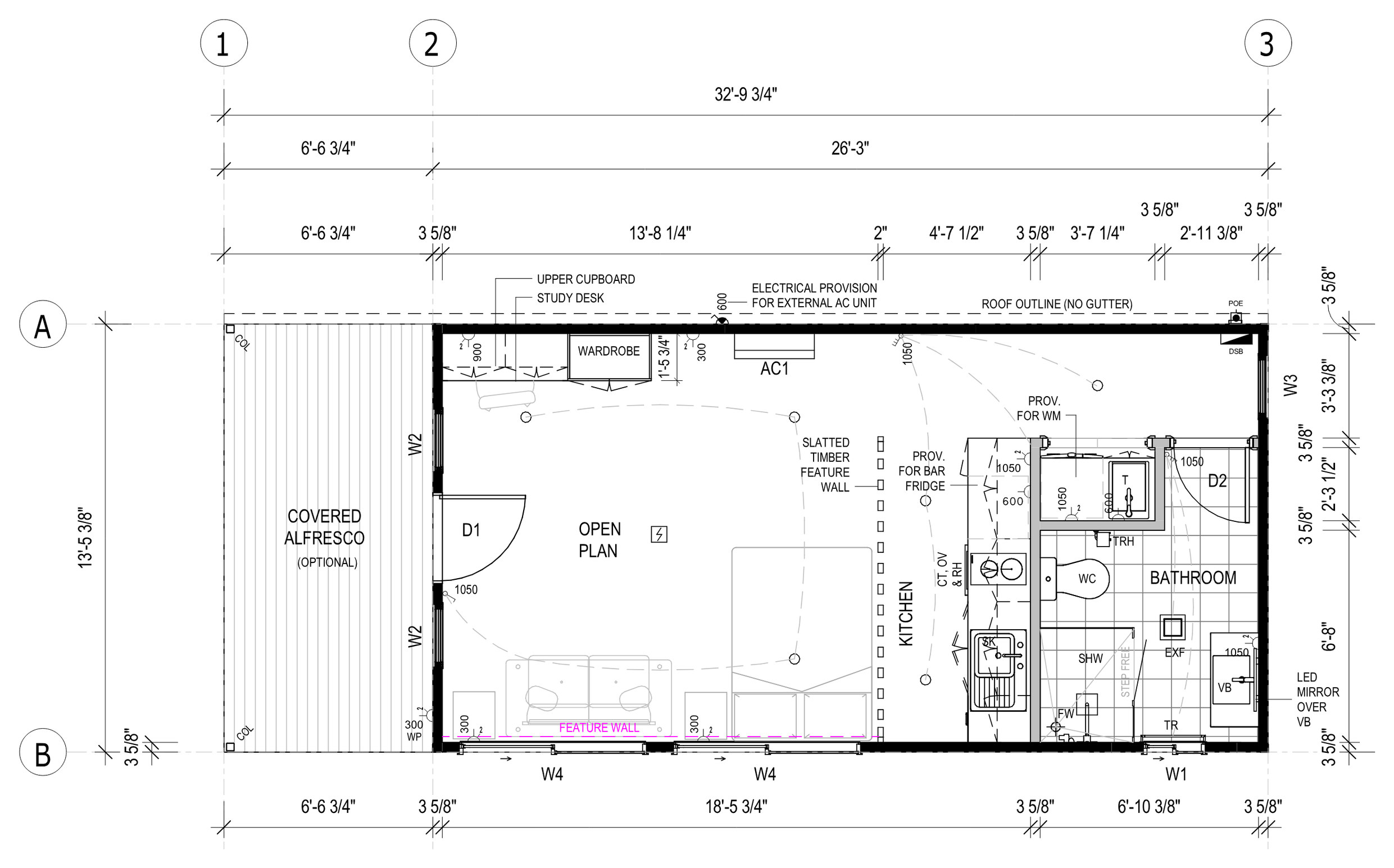

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 4 in x 16 ga lipped channel joists @ 18 in on center
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 3-5/8 in (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
