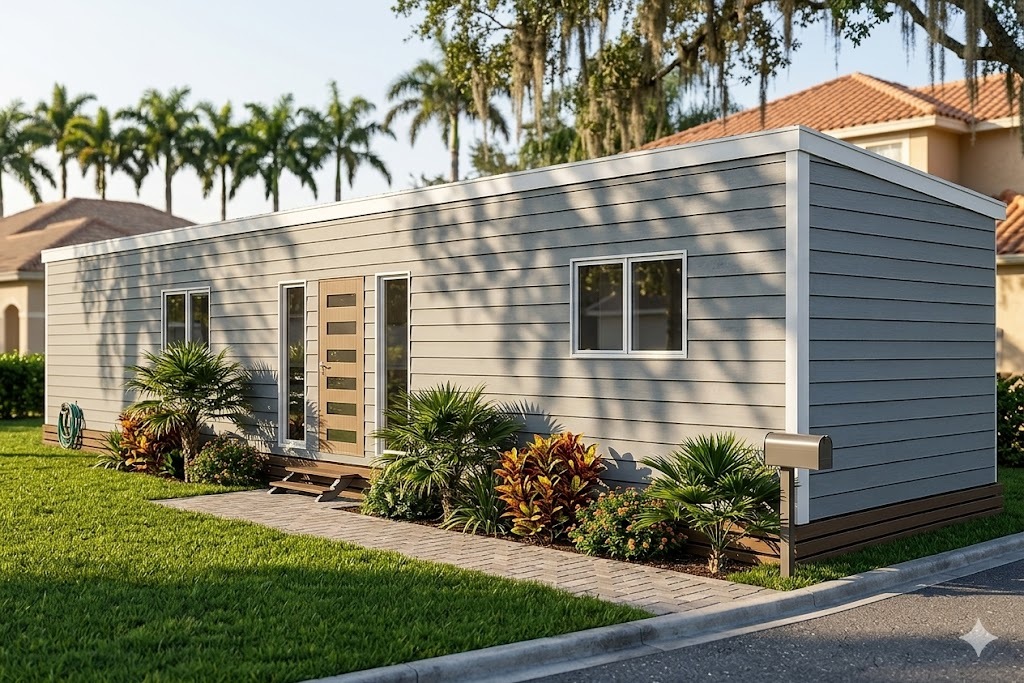

The Snowy

The Snowy is the ultimate in versatility, offering three bedrooms and one bathroom in a generous 49 ft 3 in x 13 ft 9 in design.

Sleeps

Bedrooms

Bathroom

677 sq ft

Floor Area

The Design

About the Snowy

The Snowy is the ultimate in versatility, offering three bedrooms and one bathroom in a generous 49 ft 3 in x 13 ft 9 in design. Ideal for families or shared living, this flat combines modern finishes with functional living spaces.

Get Instant Pricing Full Architectural Drawings Inquire about the Snowy

Gallery

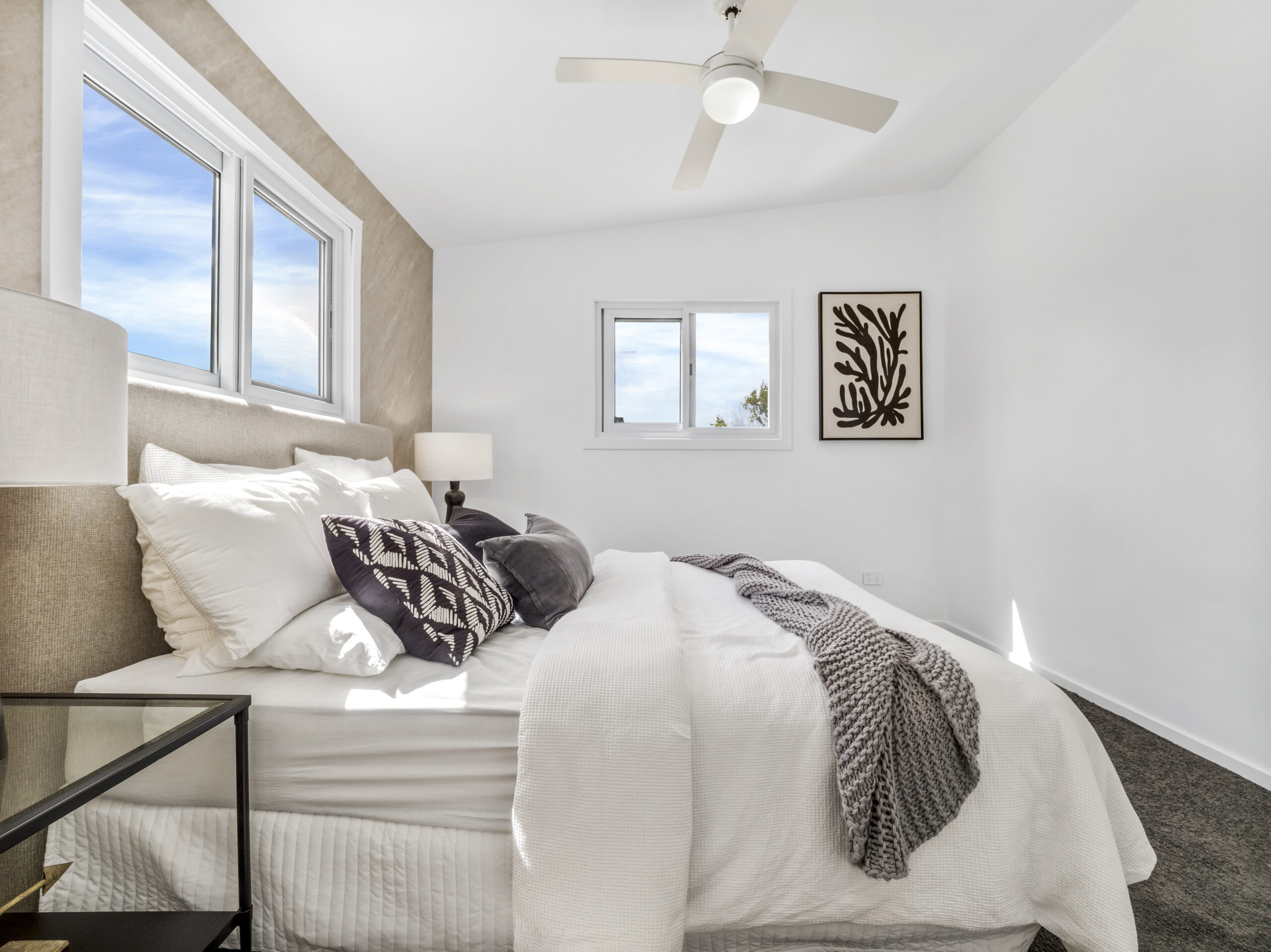

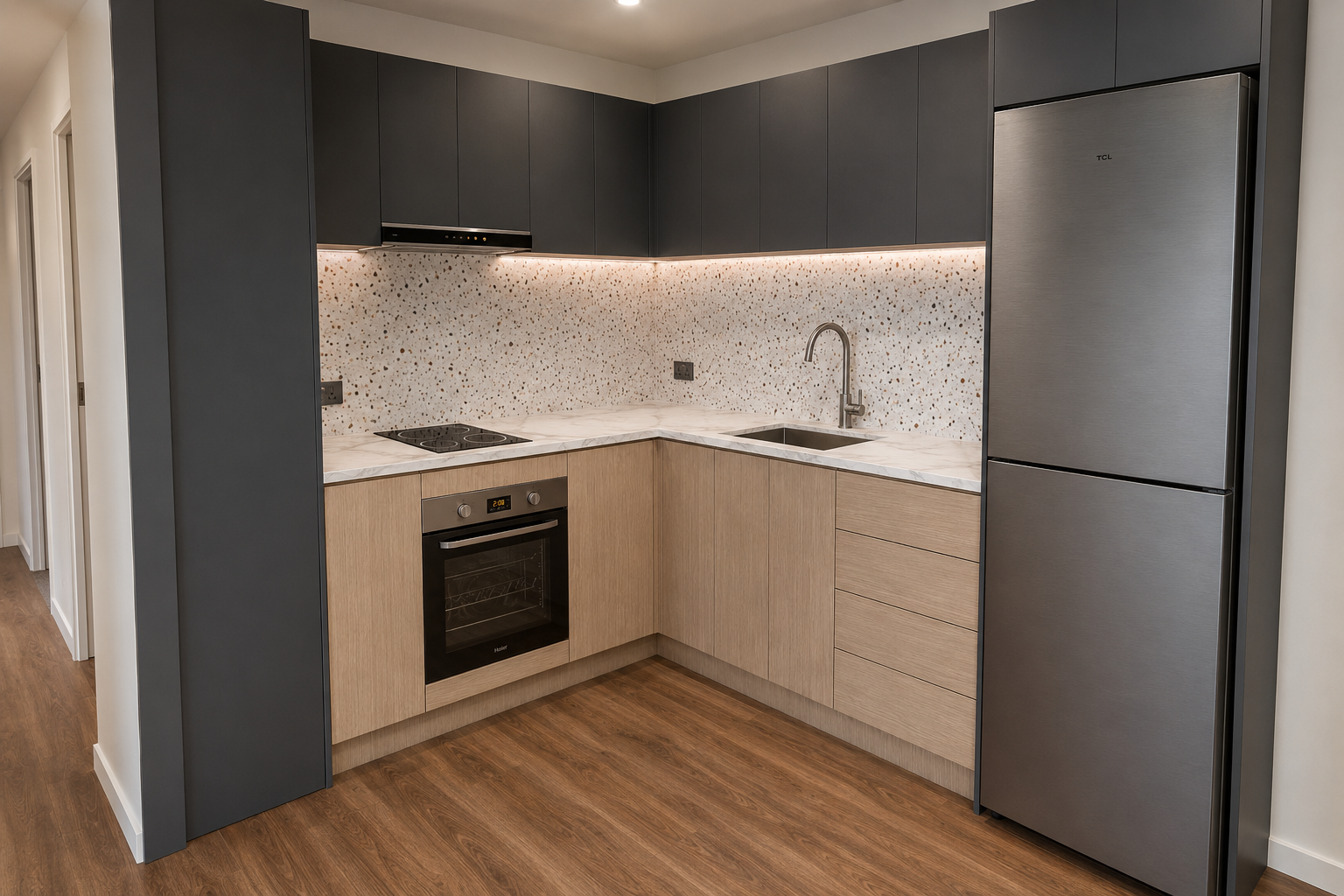

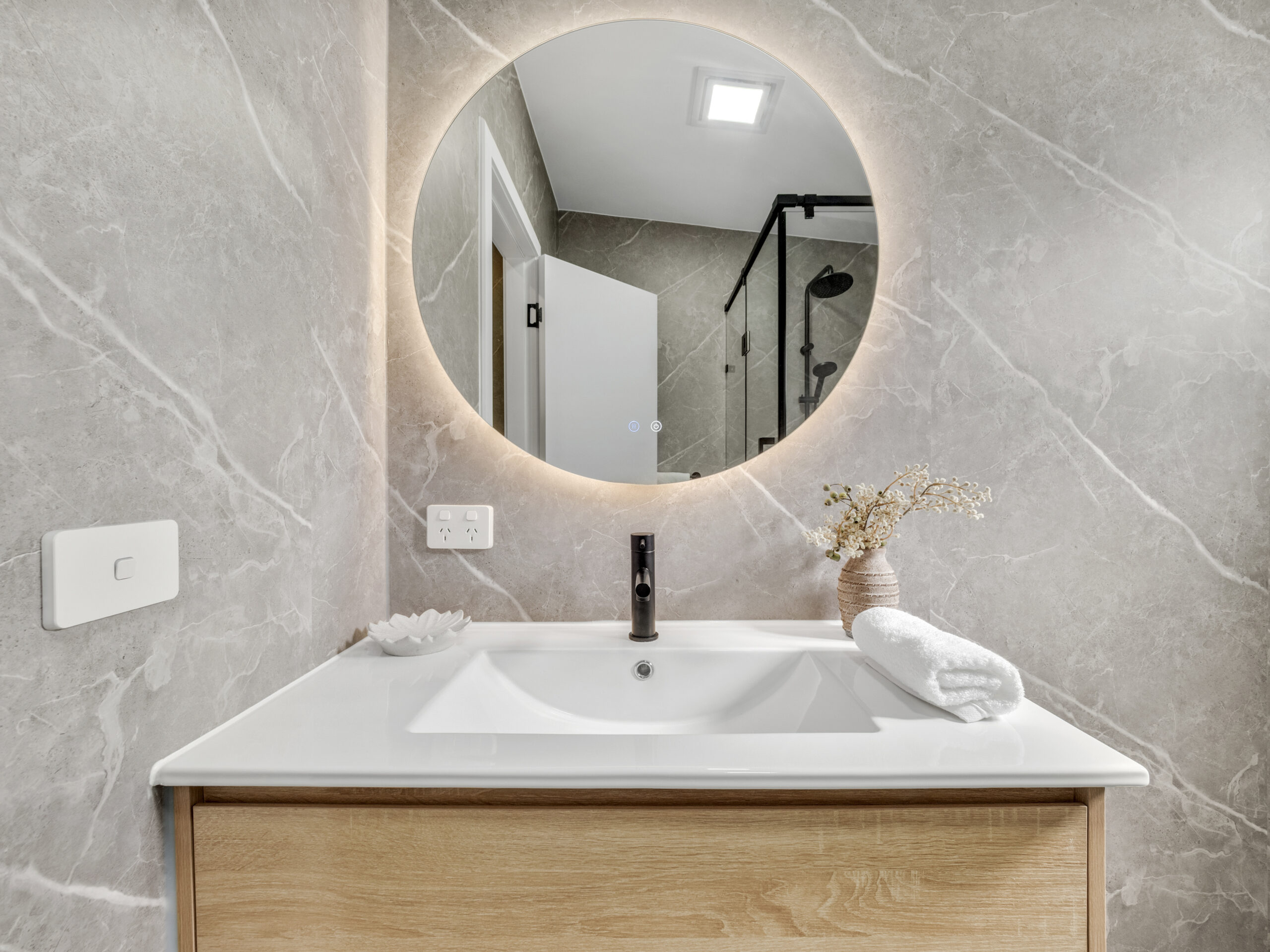

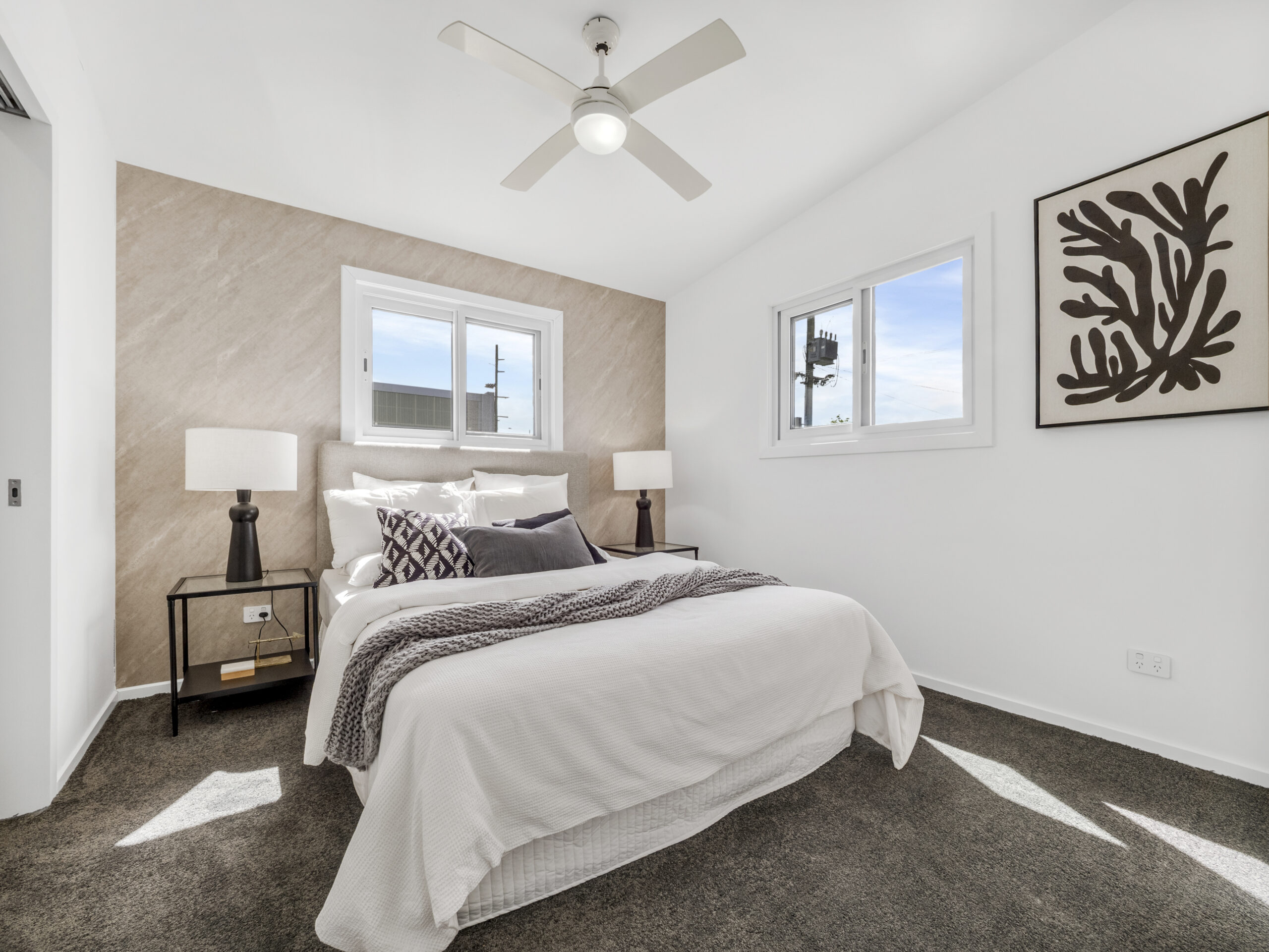

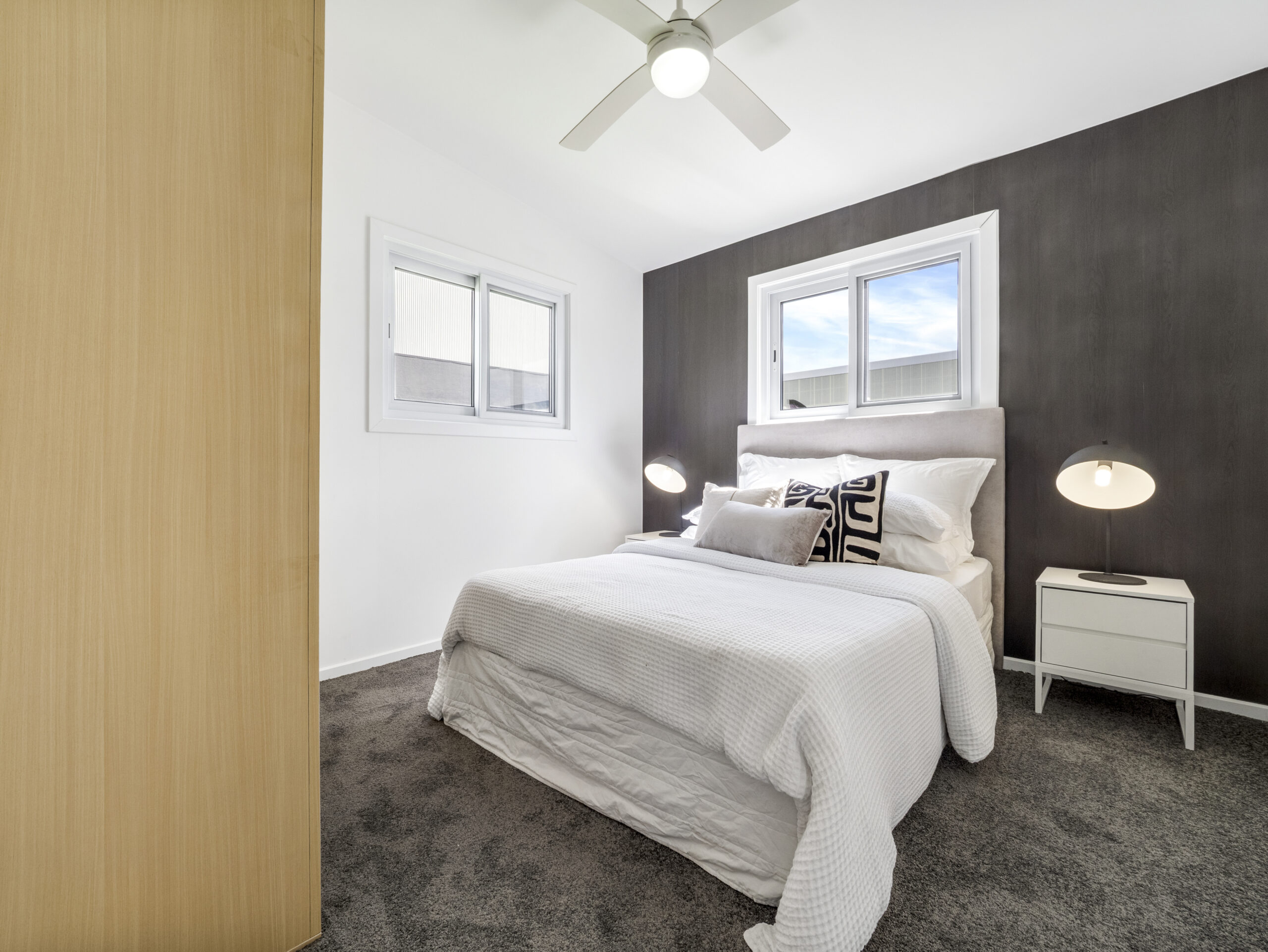

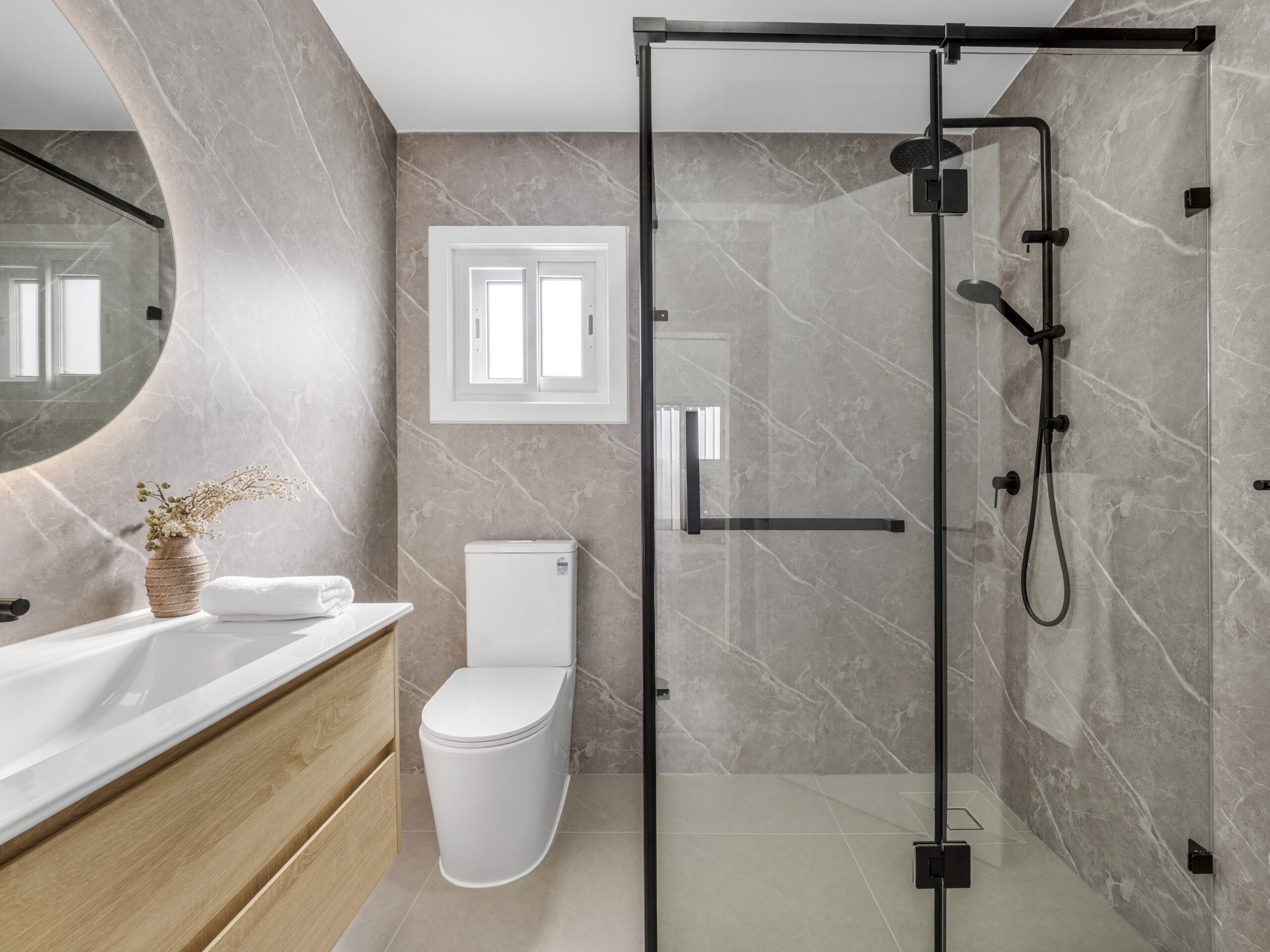

Inside the Snowy

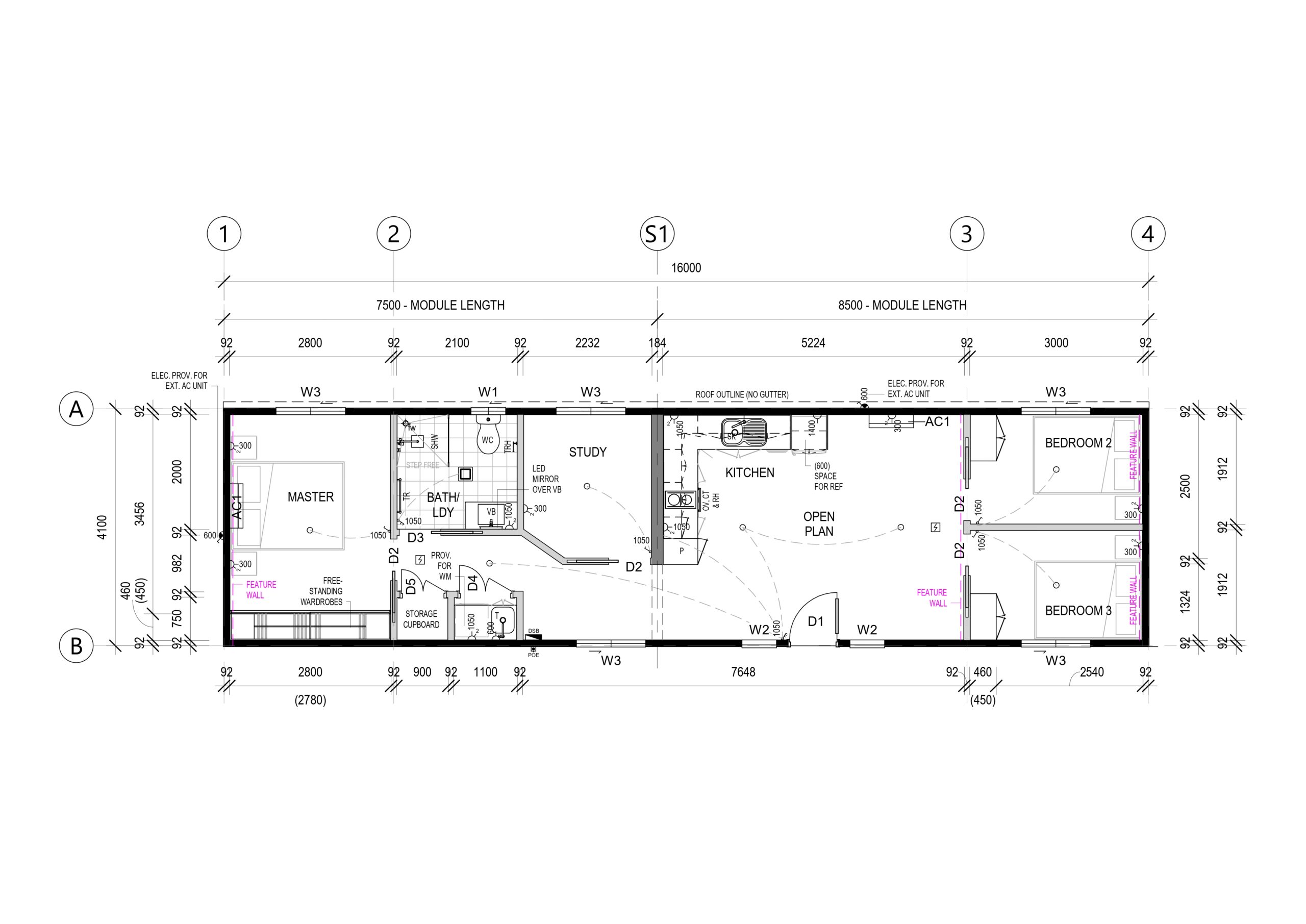

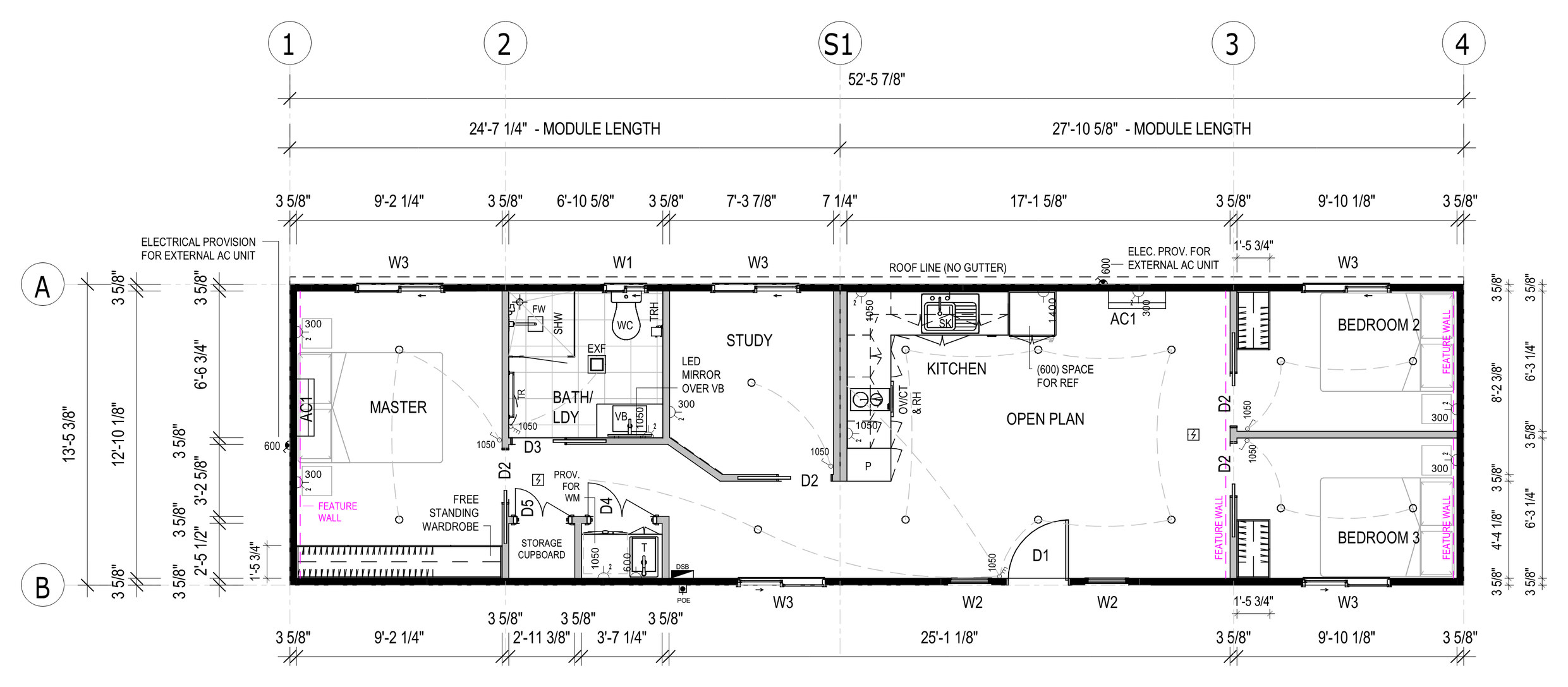

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 4 in x 16 ga lipped channel joists @ 18 in on center
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 3-5/8 in (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
