The Fraser

The Fraser is designed for those who need more room.

Sleeps

Bedrooms

Bathroom

633 sq ft

Floor Area

The Design

About the Fraser

The Fraser is designed for those who need more room. With three bedrooms and one bathroom, this 15m x 4.1m flat offers the perfect solution for larger families or shared living arrangements.

Get Instant Pricing Full Architectural Drawings Enquire about the Fraser

Gallery

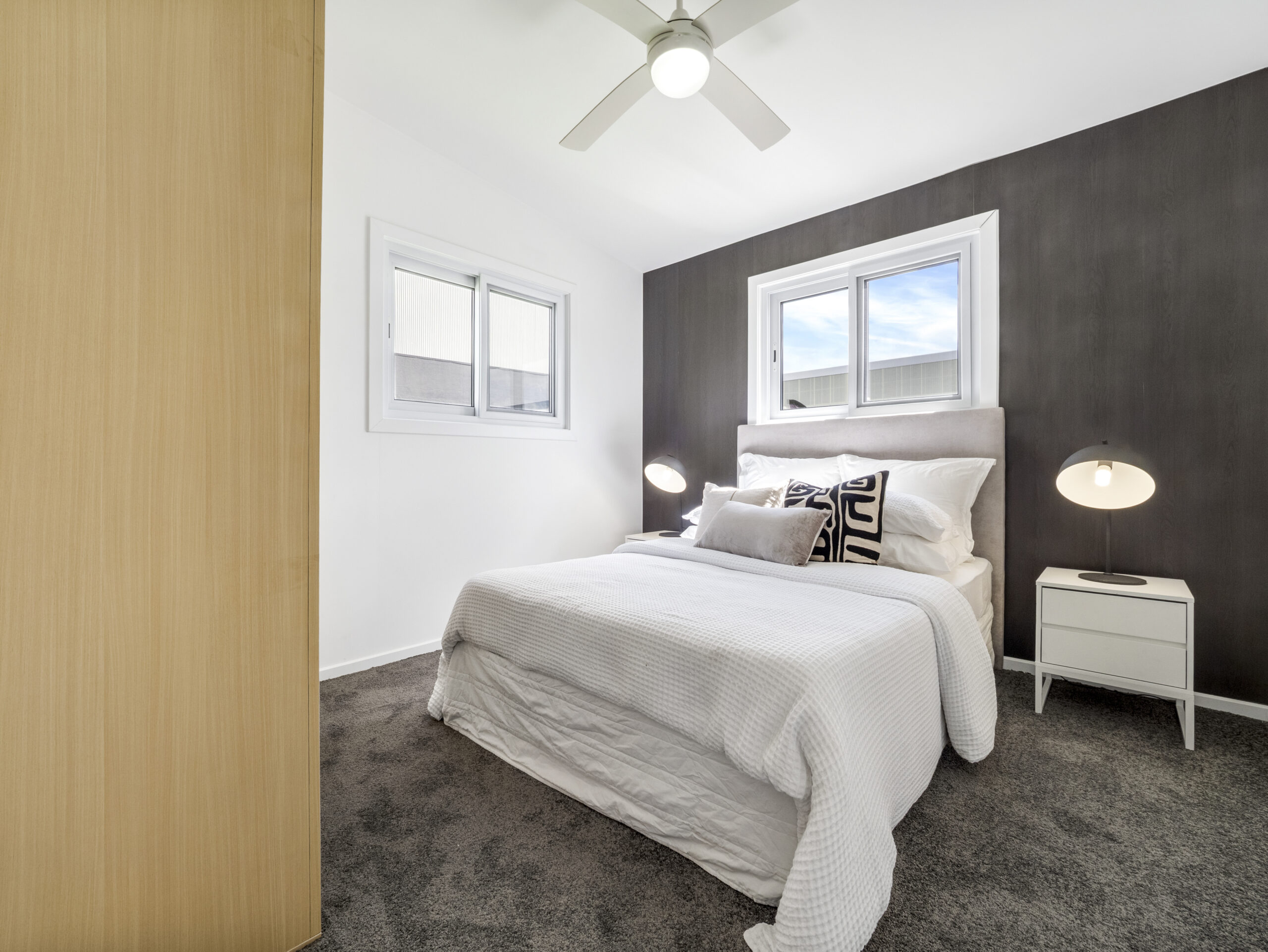

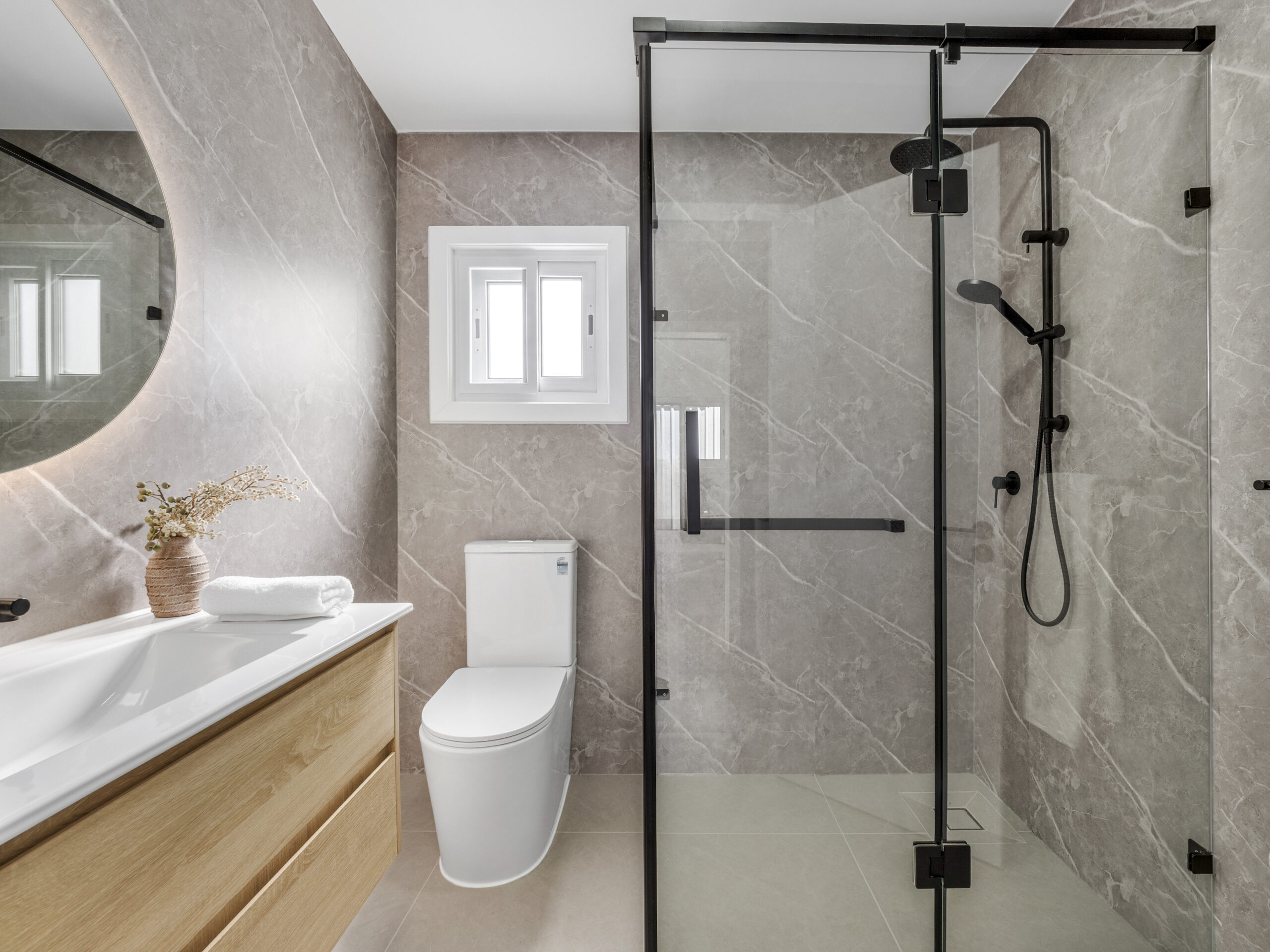

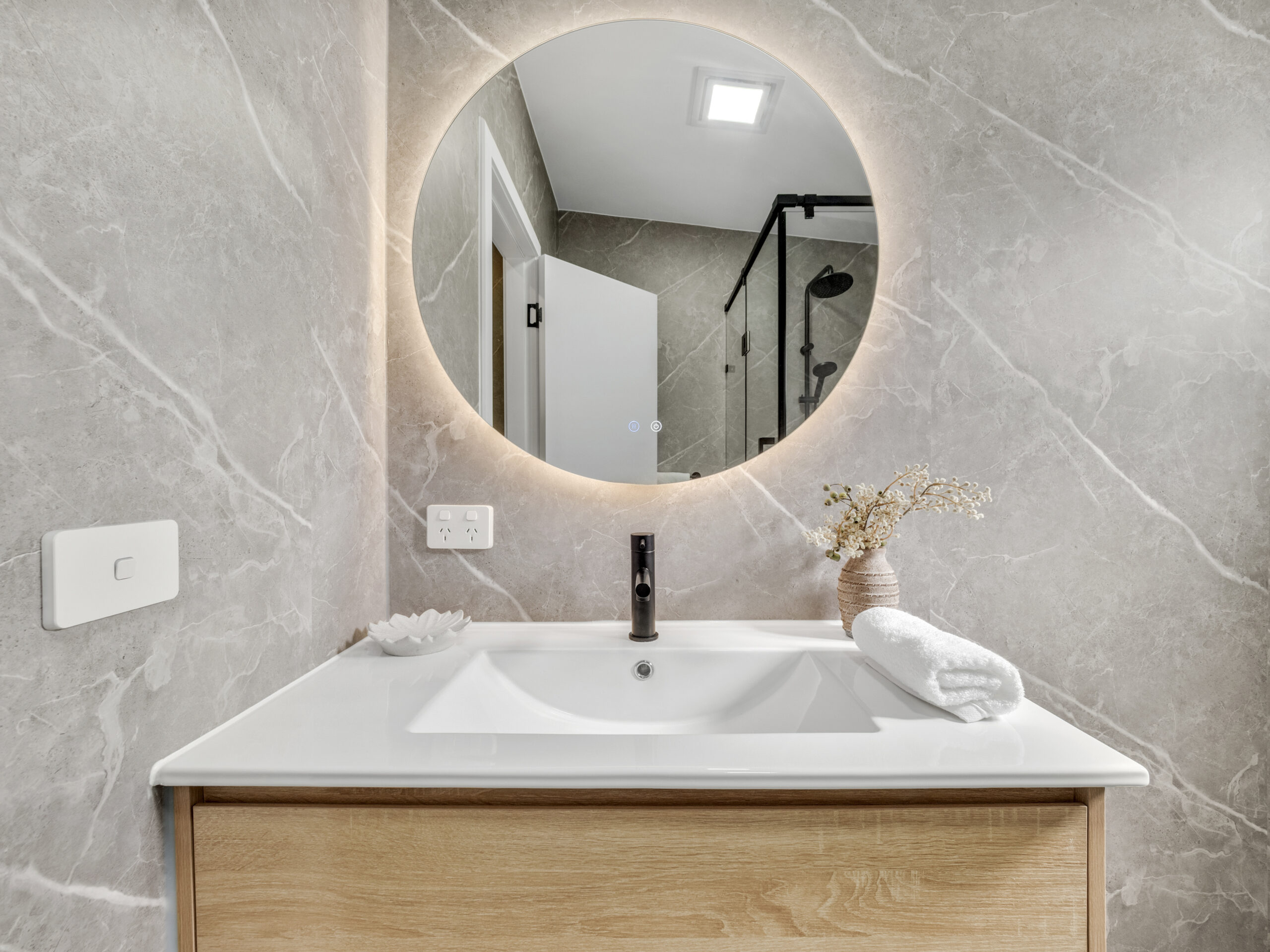

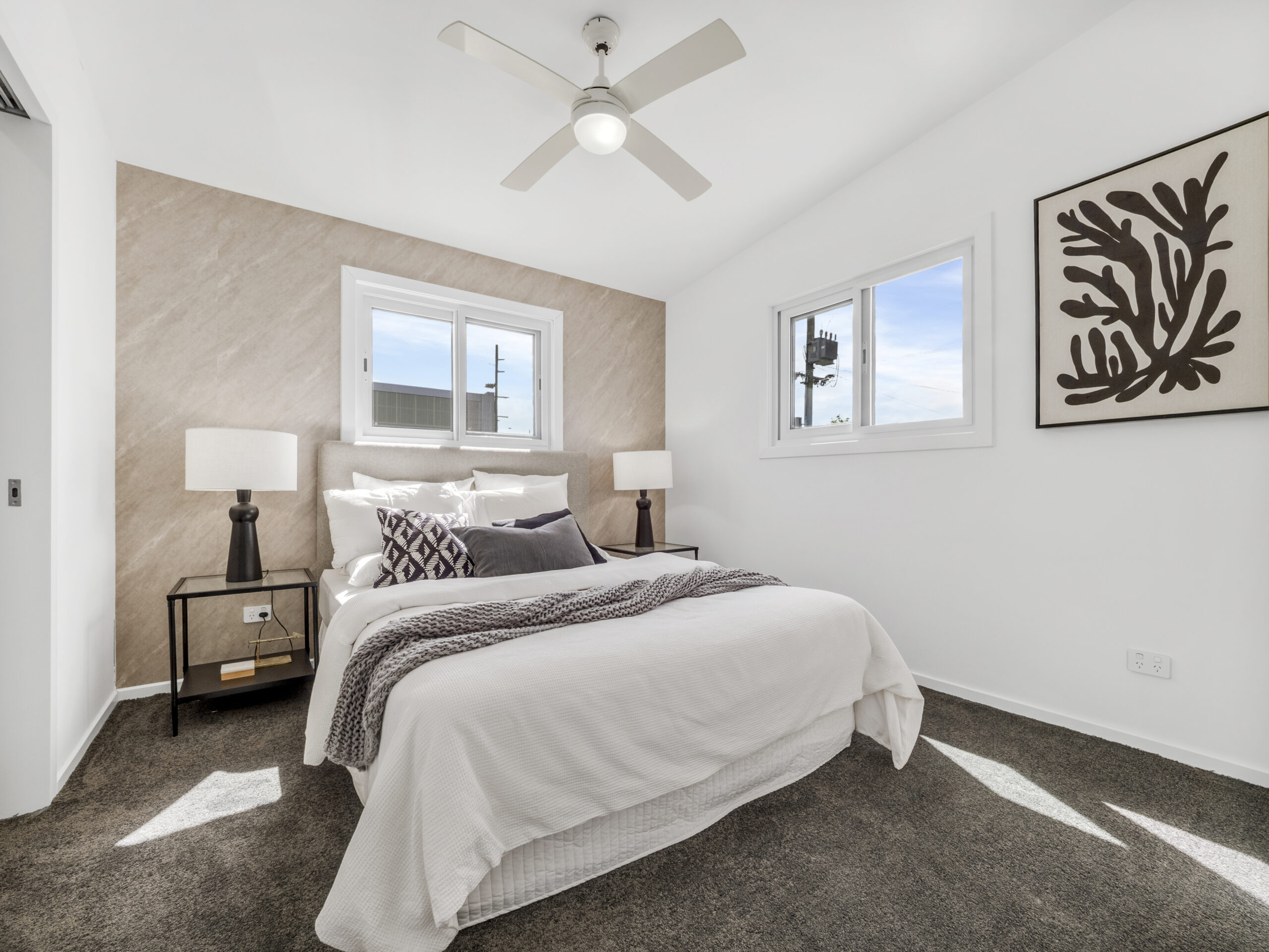

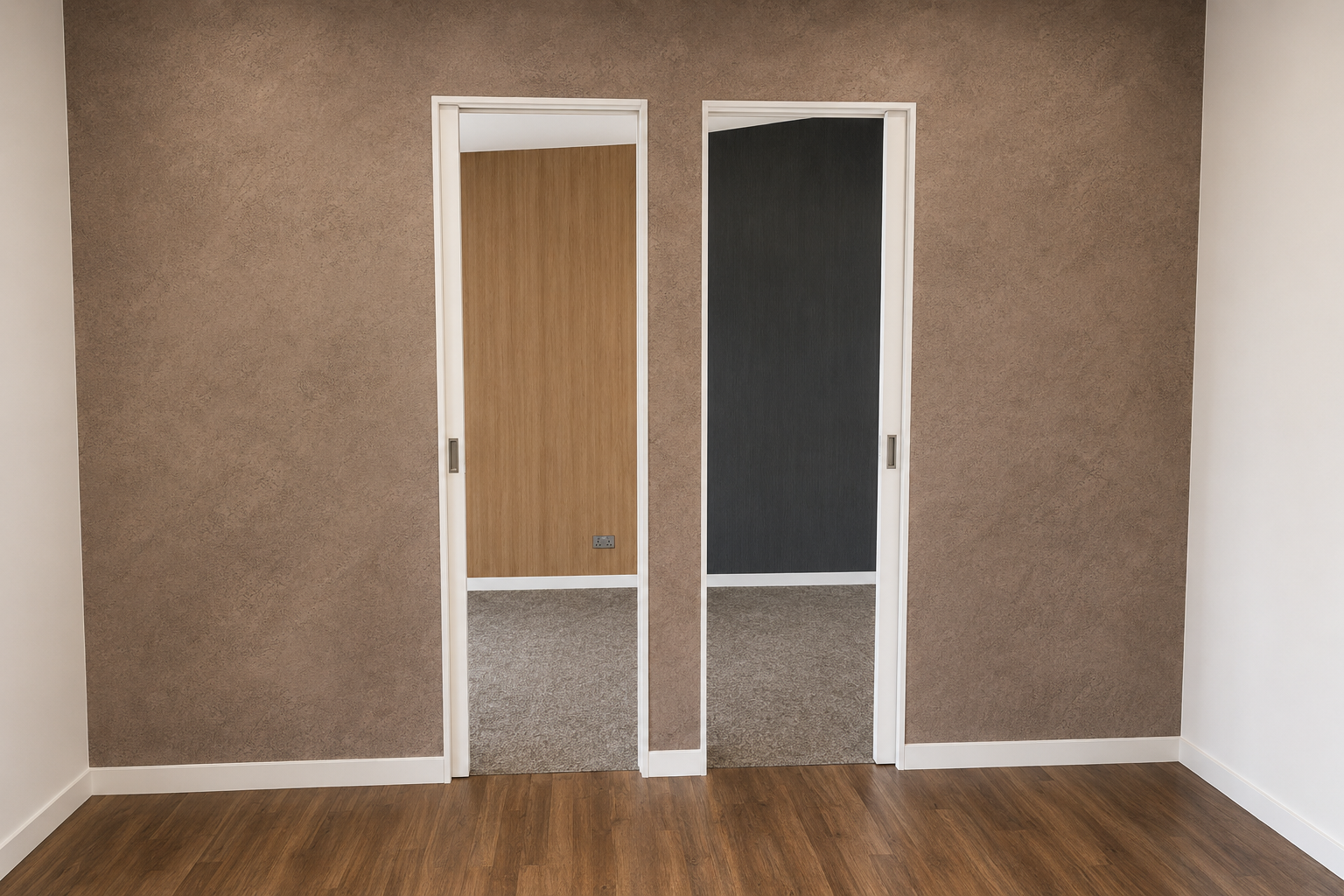

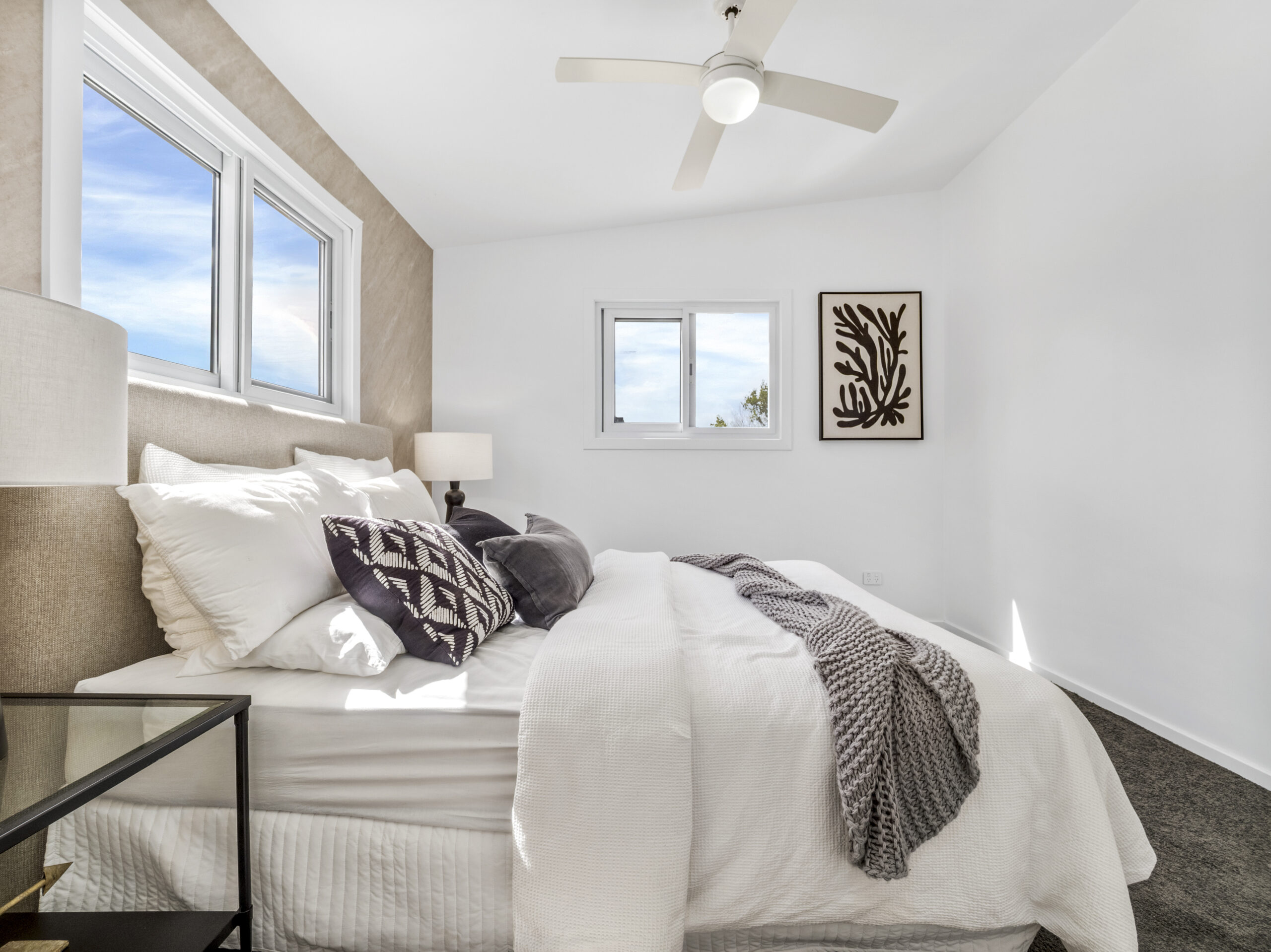

Inside the Fraser

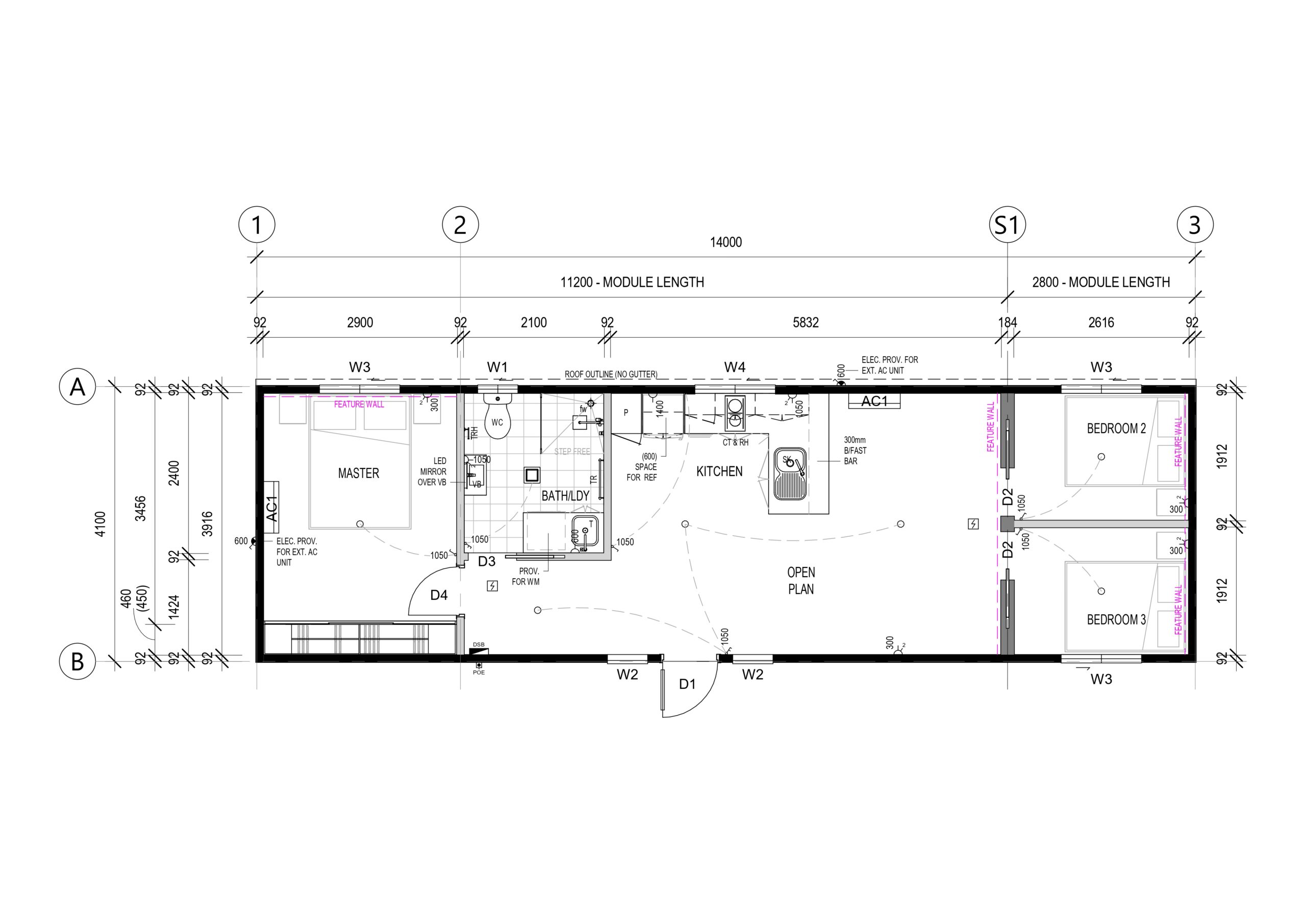

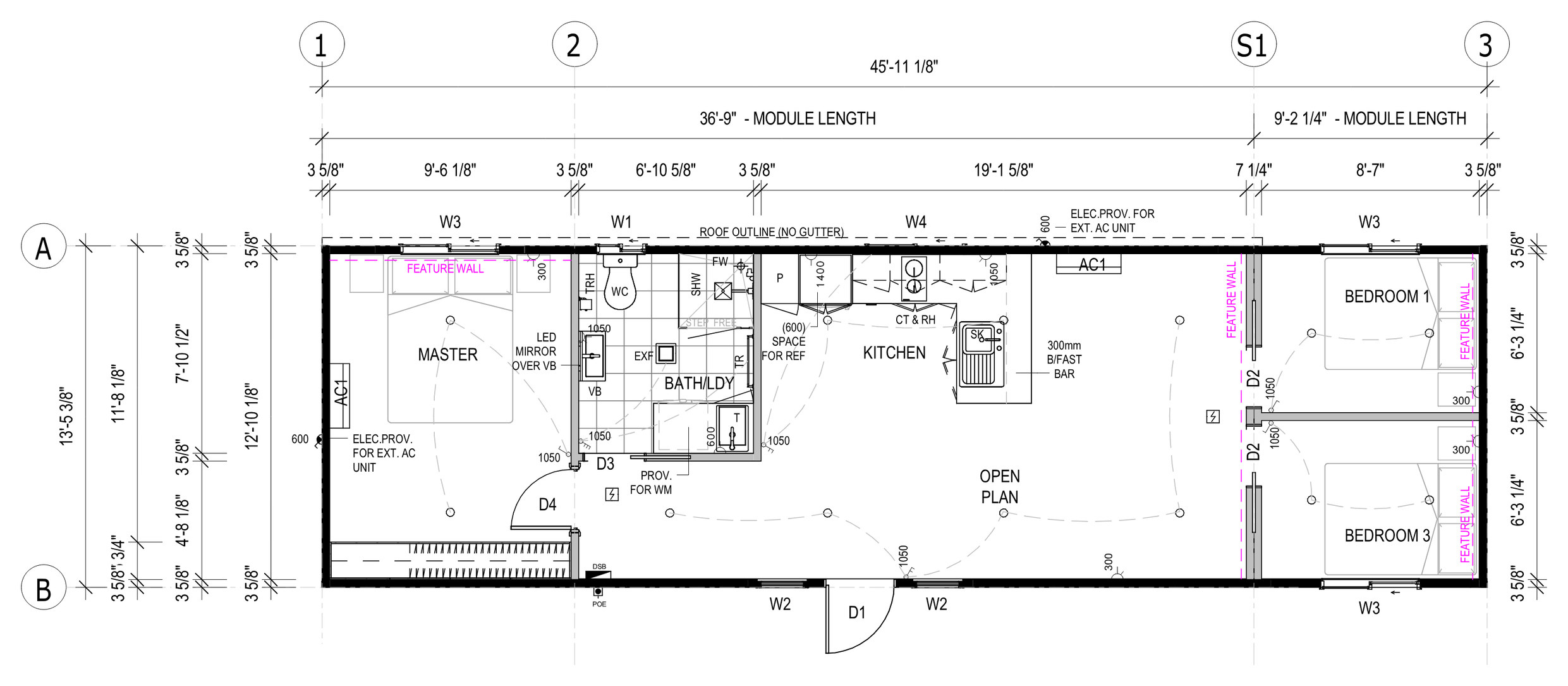

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 92mm (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
