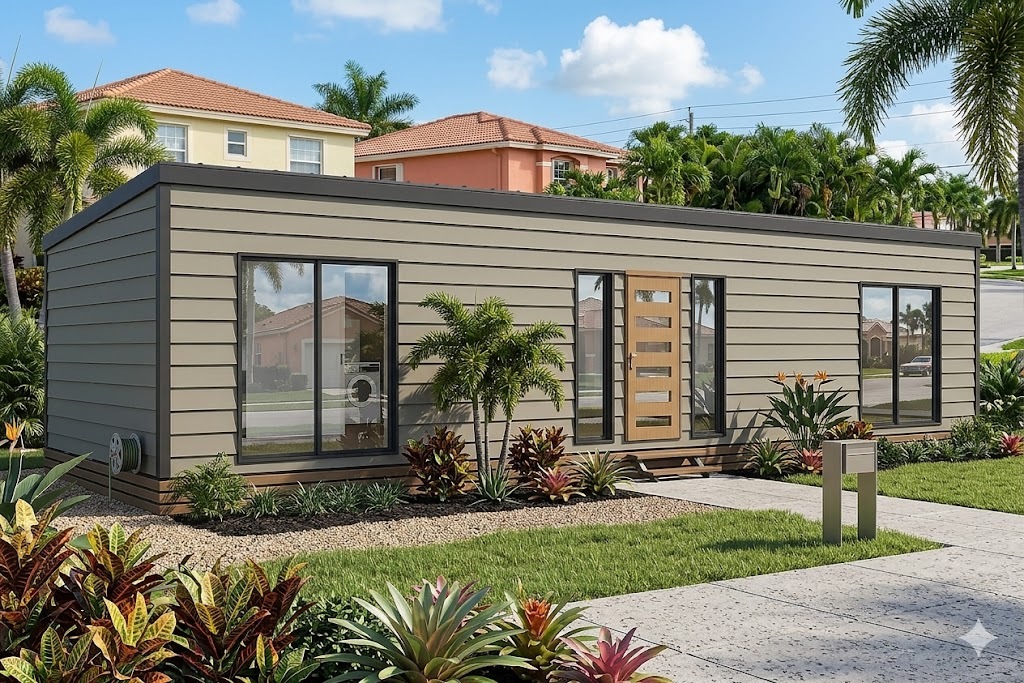

The Esperance

The Esperance takes comfort to the next level with two bedrooms, including a primary bedroom with en-suite bath, plus an additional bathroom.

Sleeps

Bedrooms

Bathrooms

588 sq ft

Floor Area

The Design

About the Esperance

The Esperance takes comfort to the next level with two bedrooms, including a primary bedroom with en-suite bath, plus an additional bathroom. Its 42 ft 8 in x 13 ft 9 in layout is perfect for families or dual-living arrangements.

Get Instant Pricing Full Architectural Drawings Inquire about the Esperance

Gallery

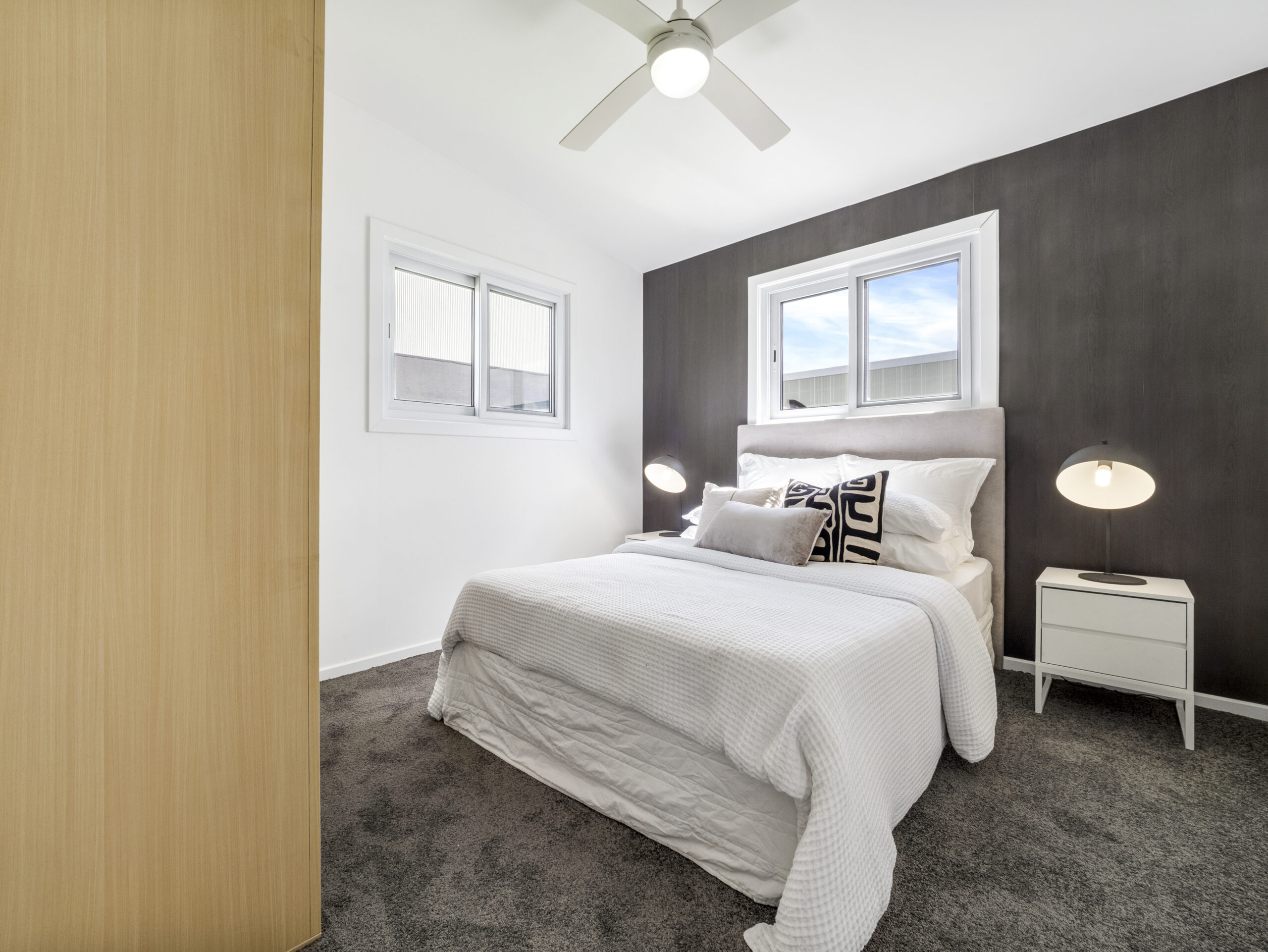

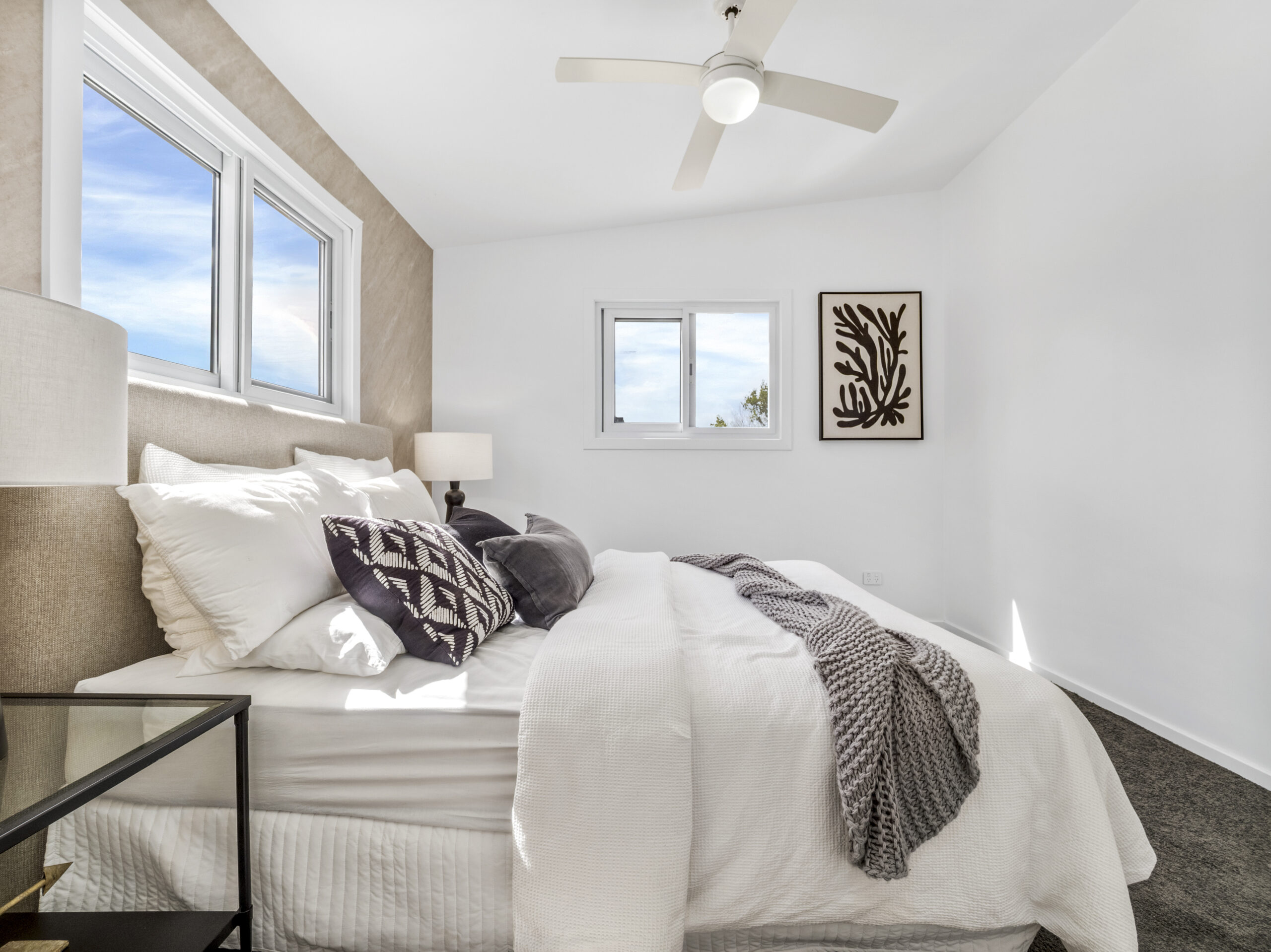

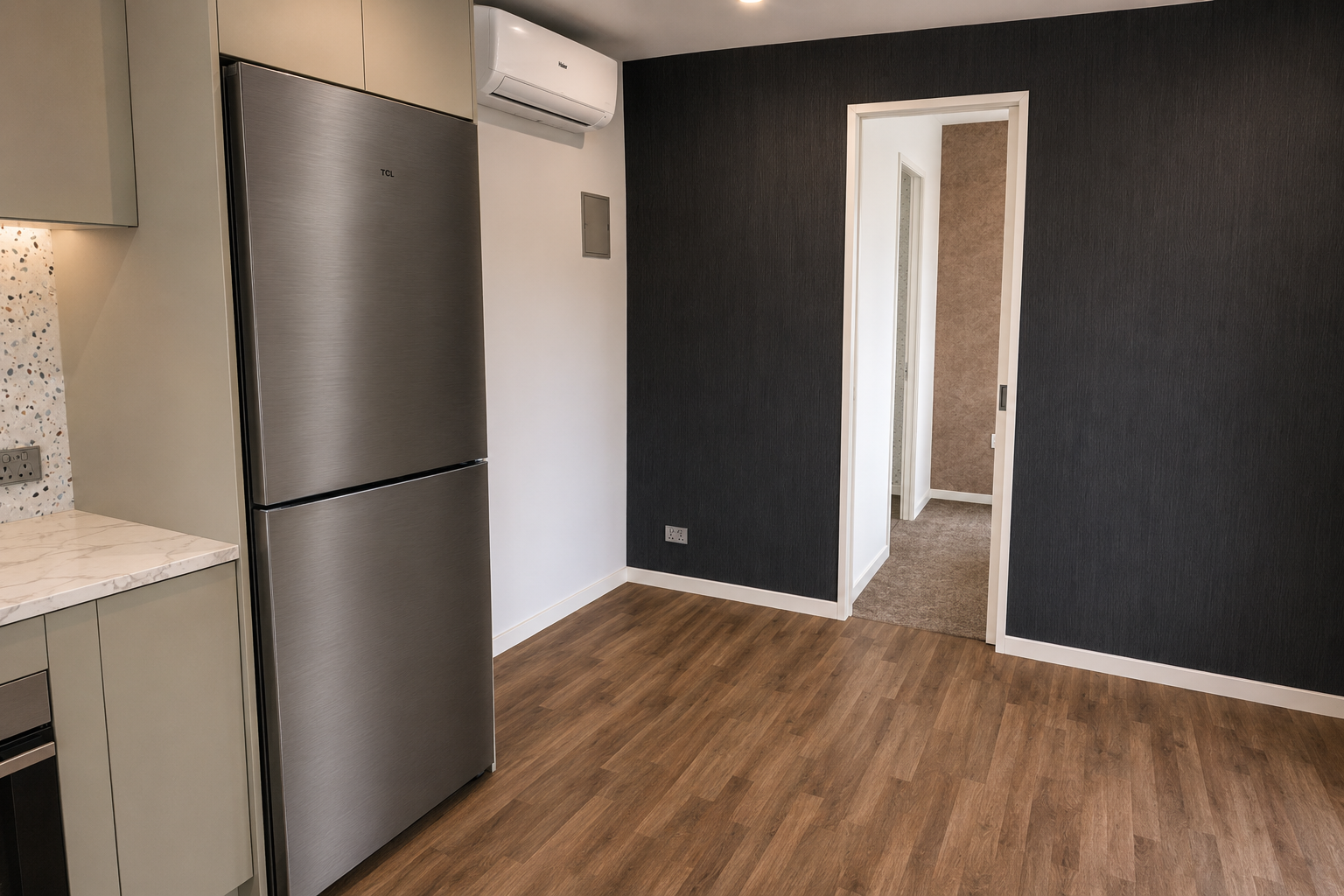

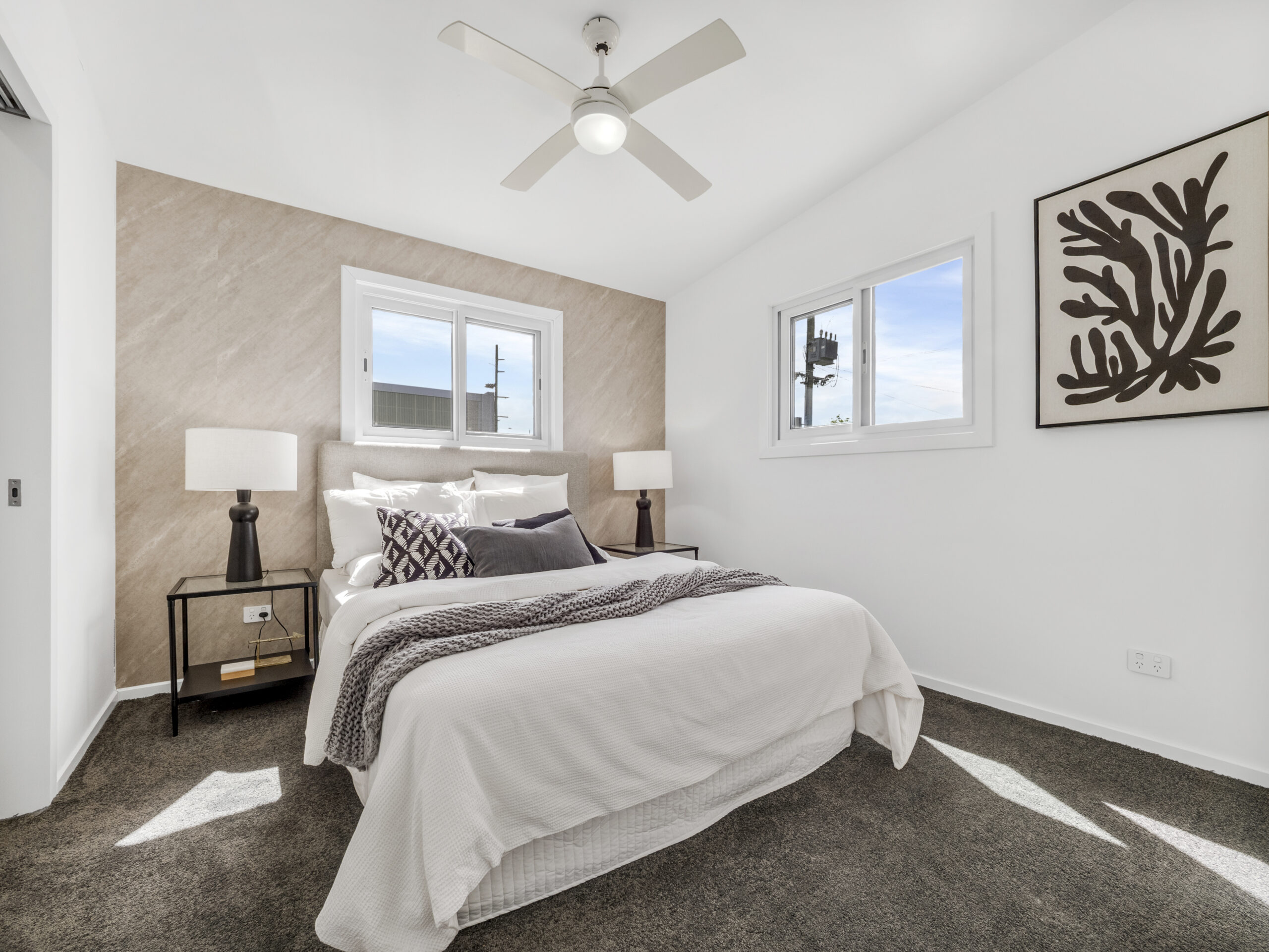

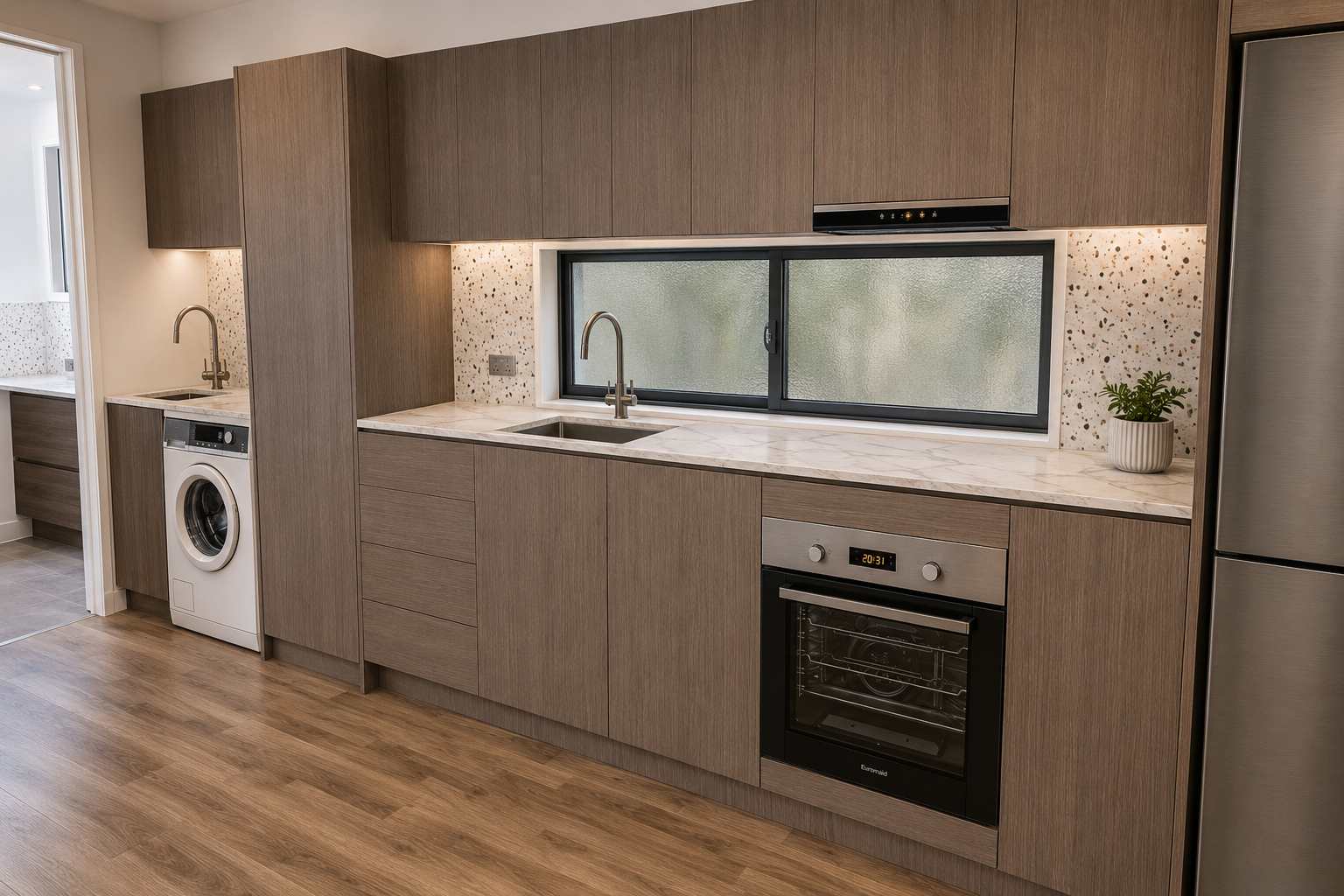

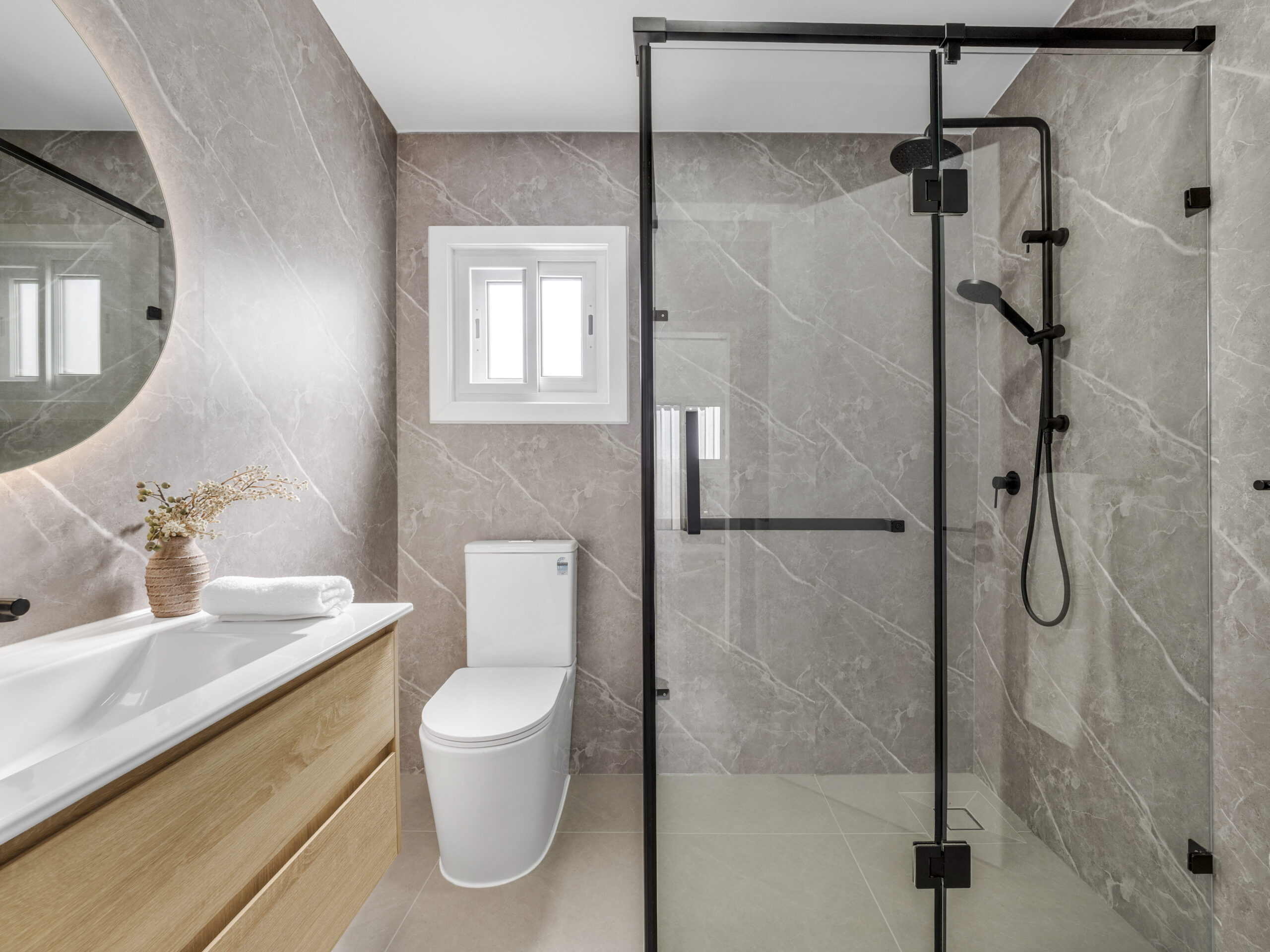

Inside the Esperance

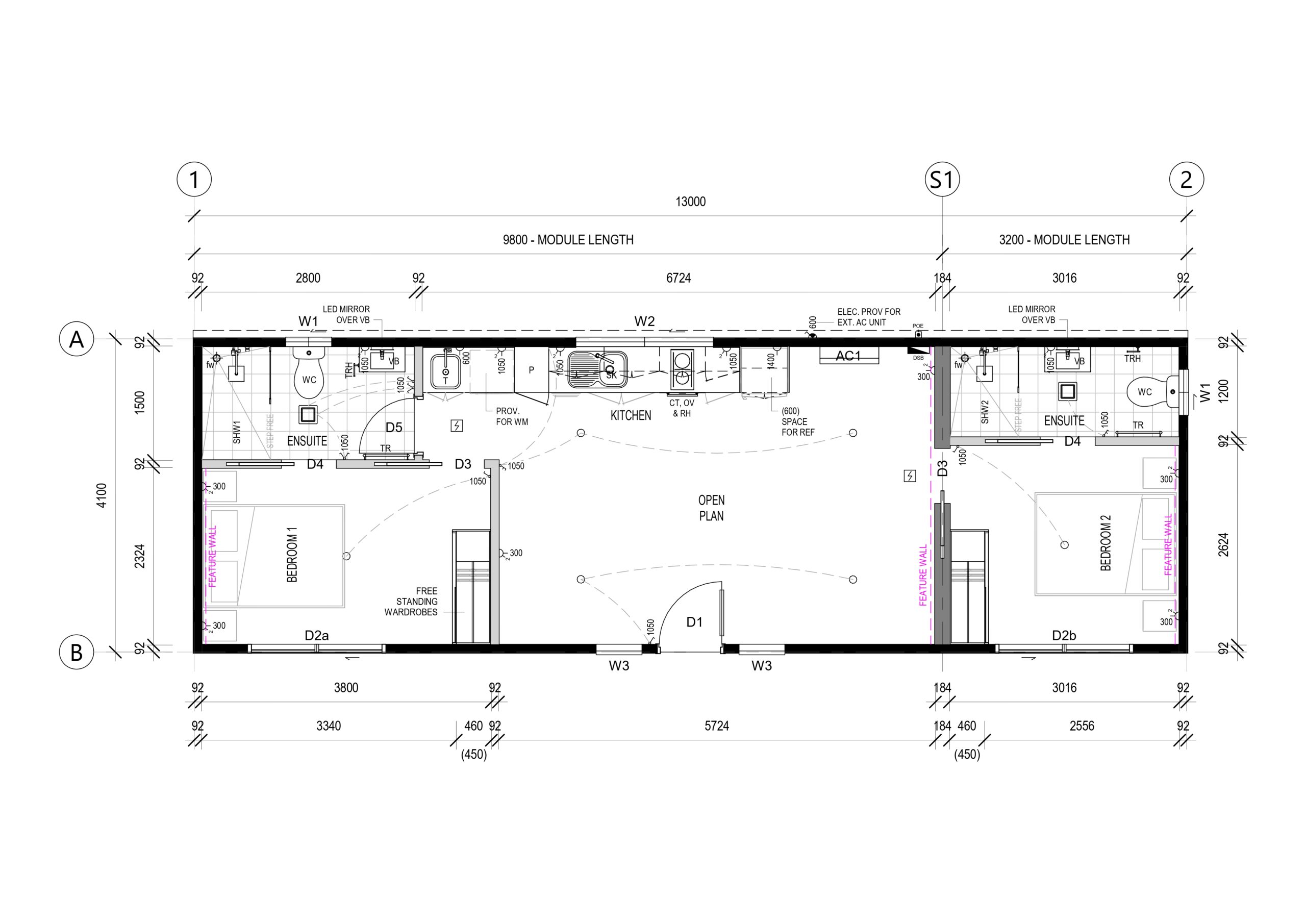

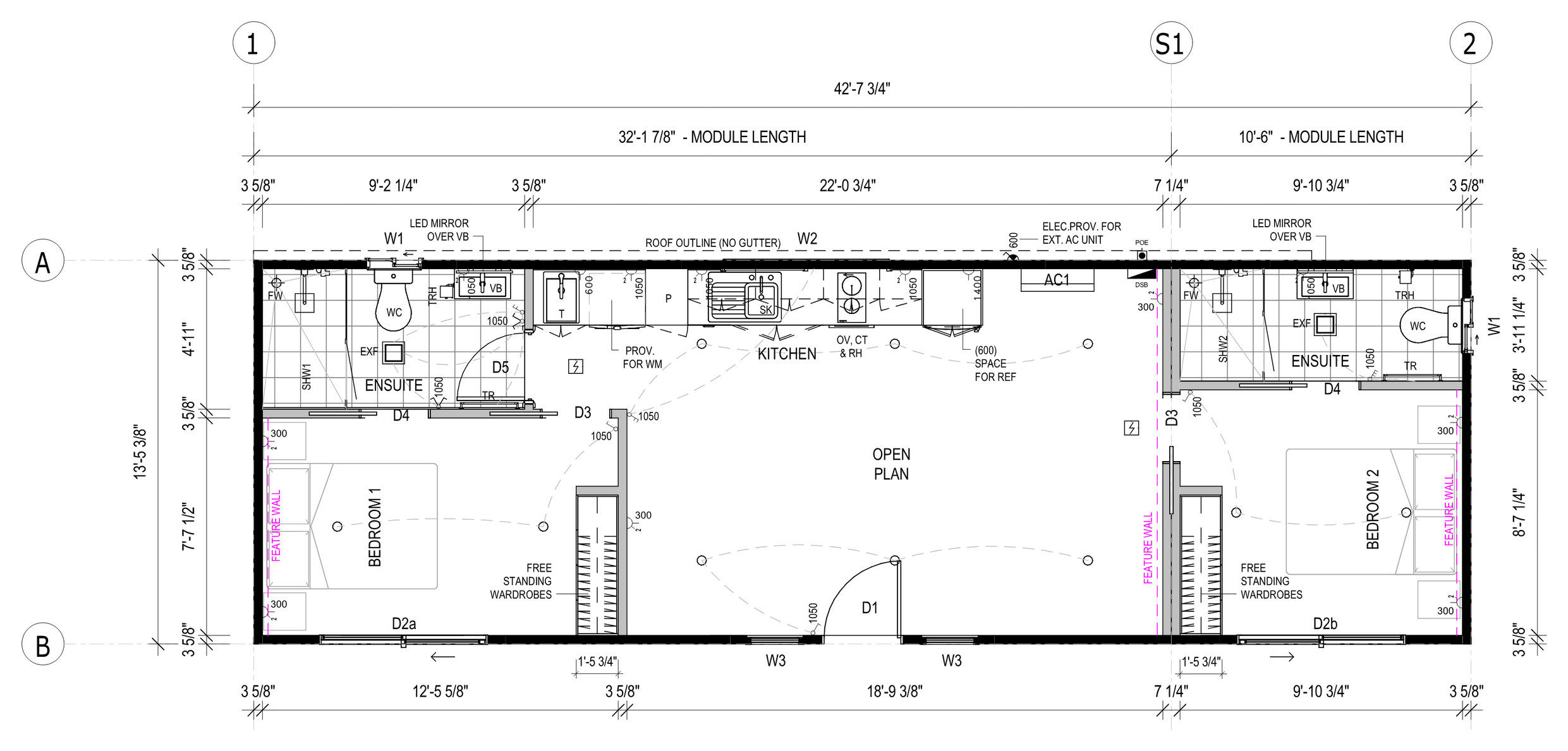

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 4 in x 16 ga lipped channel joists @ 18 in on center
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 3-5/8 in (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
