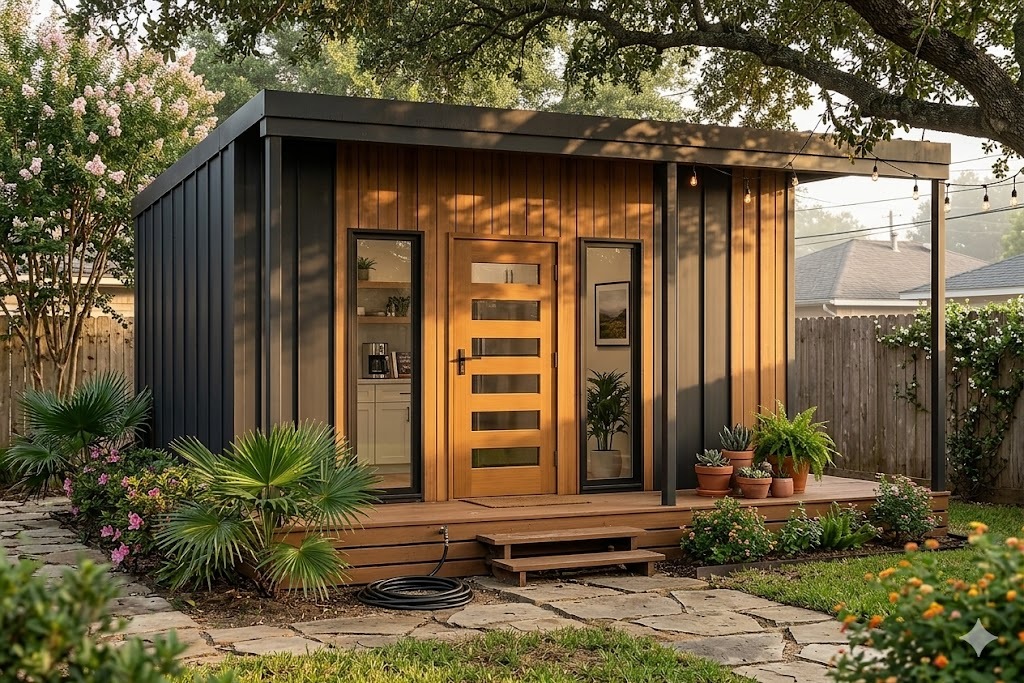

The Byron

The Byron is a compact and cost-effective solution for additional living space.

Sleeps

Bedroom

Bathroom

220 sq ft

Floor Area

The Design

About the Byron

The Byron is a compact and cost-effective solution for additional living space. This one-bedroom, one-bathroom design is perfect for singles or couples, offering a comfortable and functional layout in just 6m x 3.4m.

Get Instant Pricing Full Architectural Drawings Enquire about the Byron

Gallery

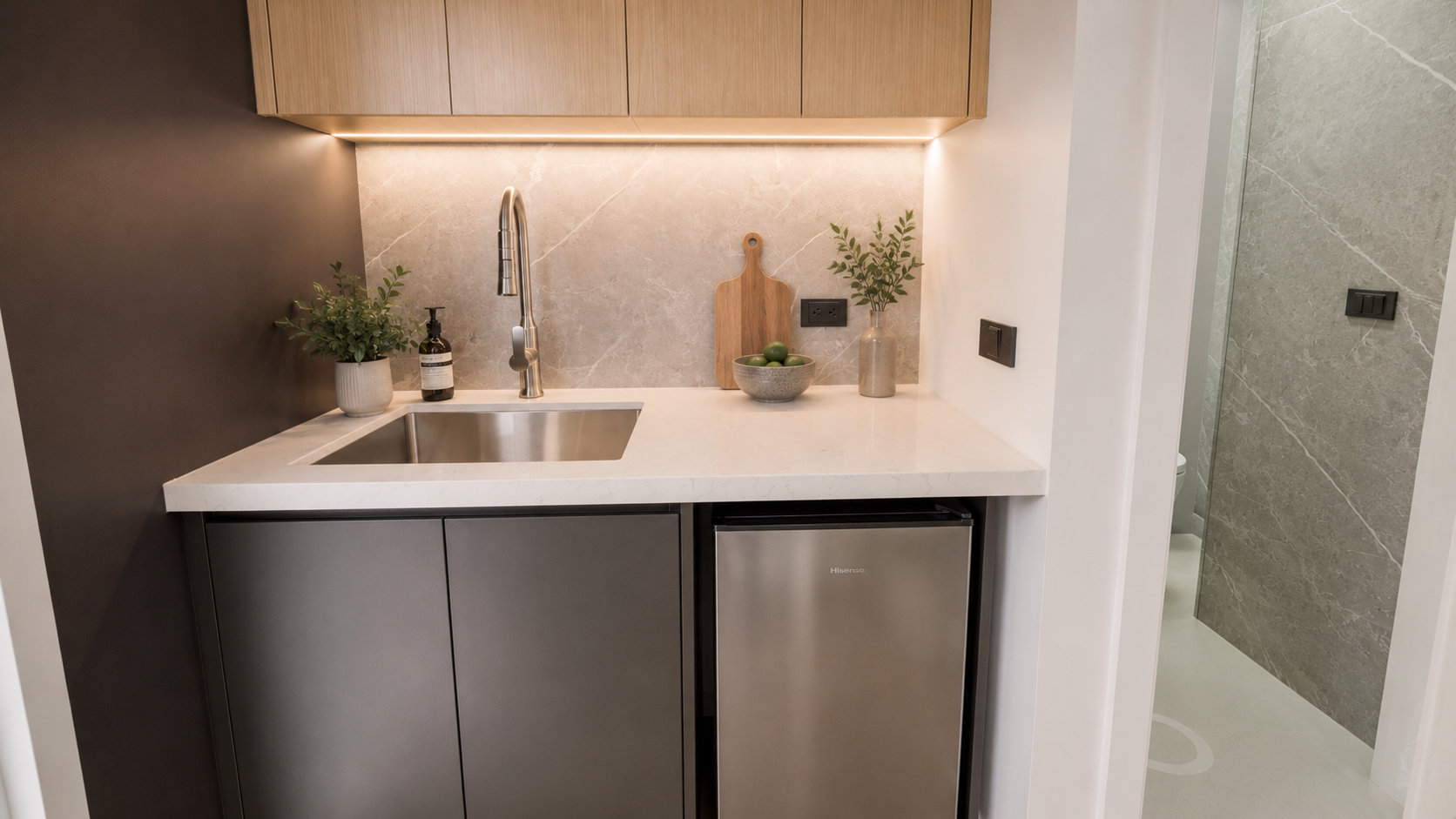

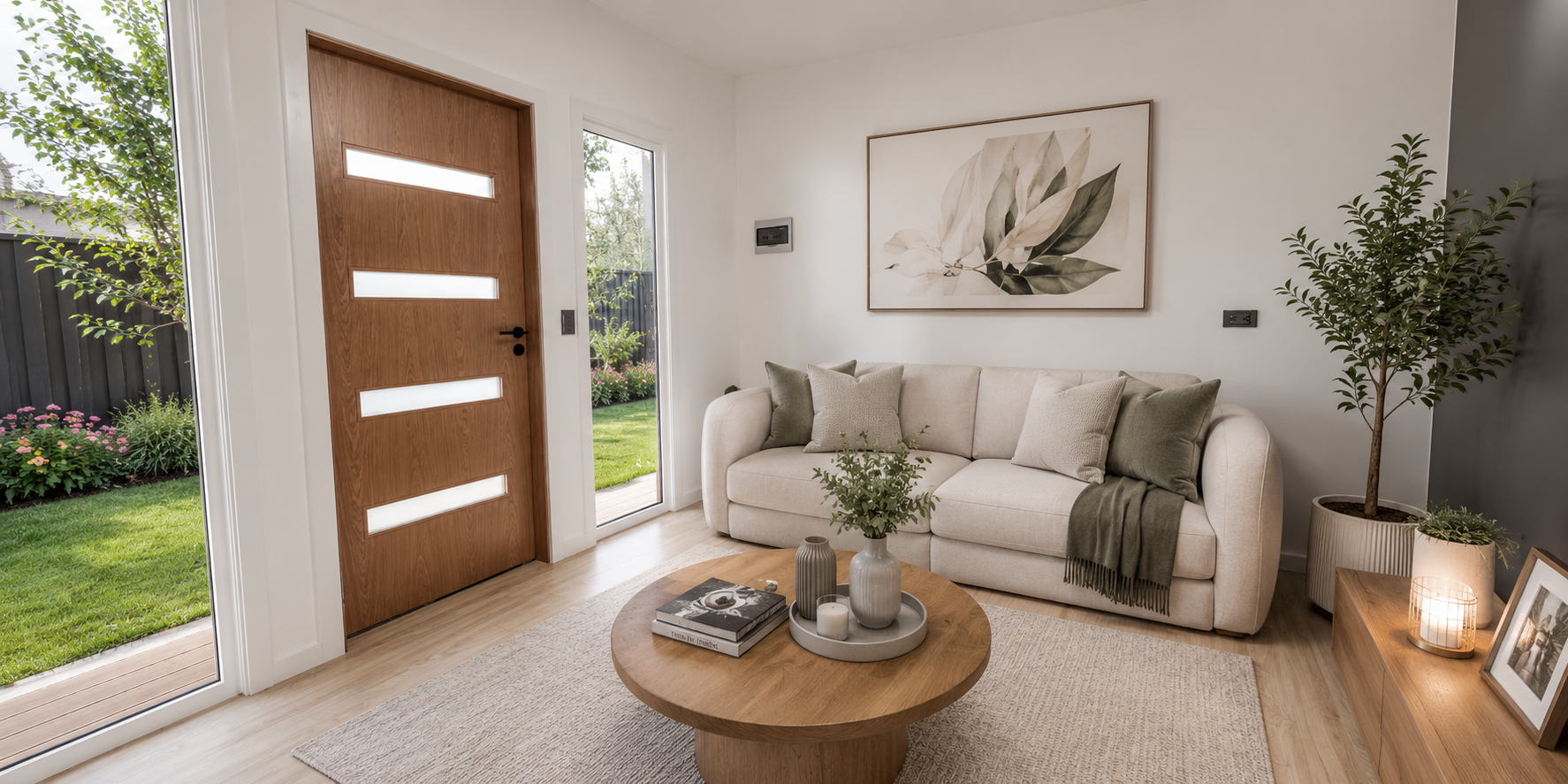

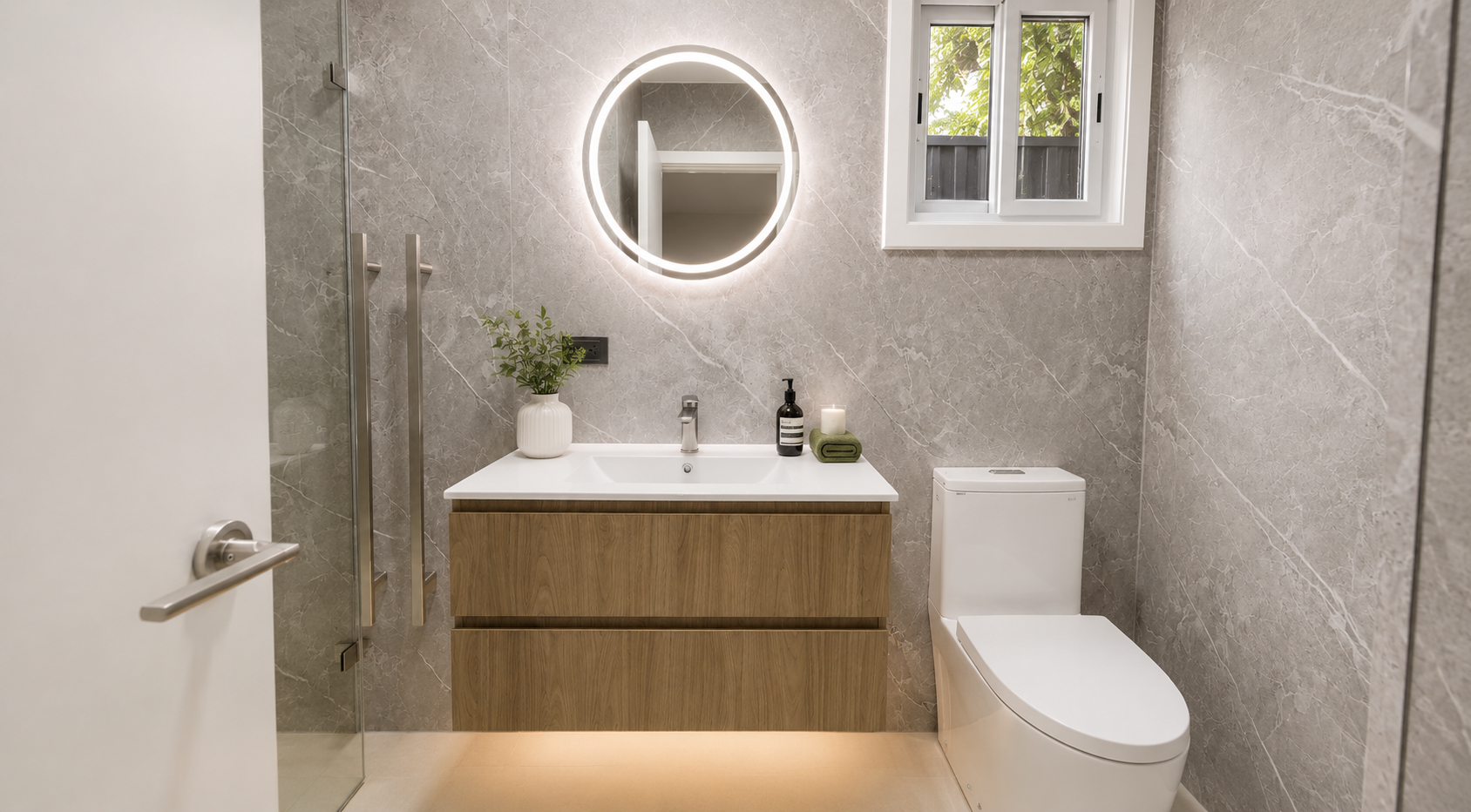

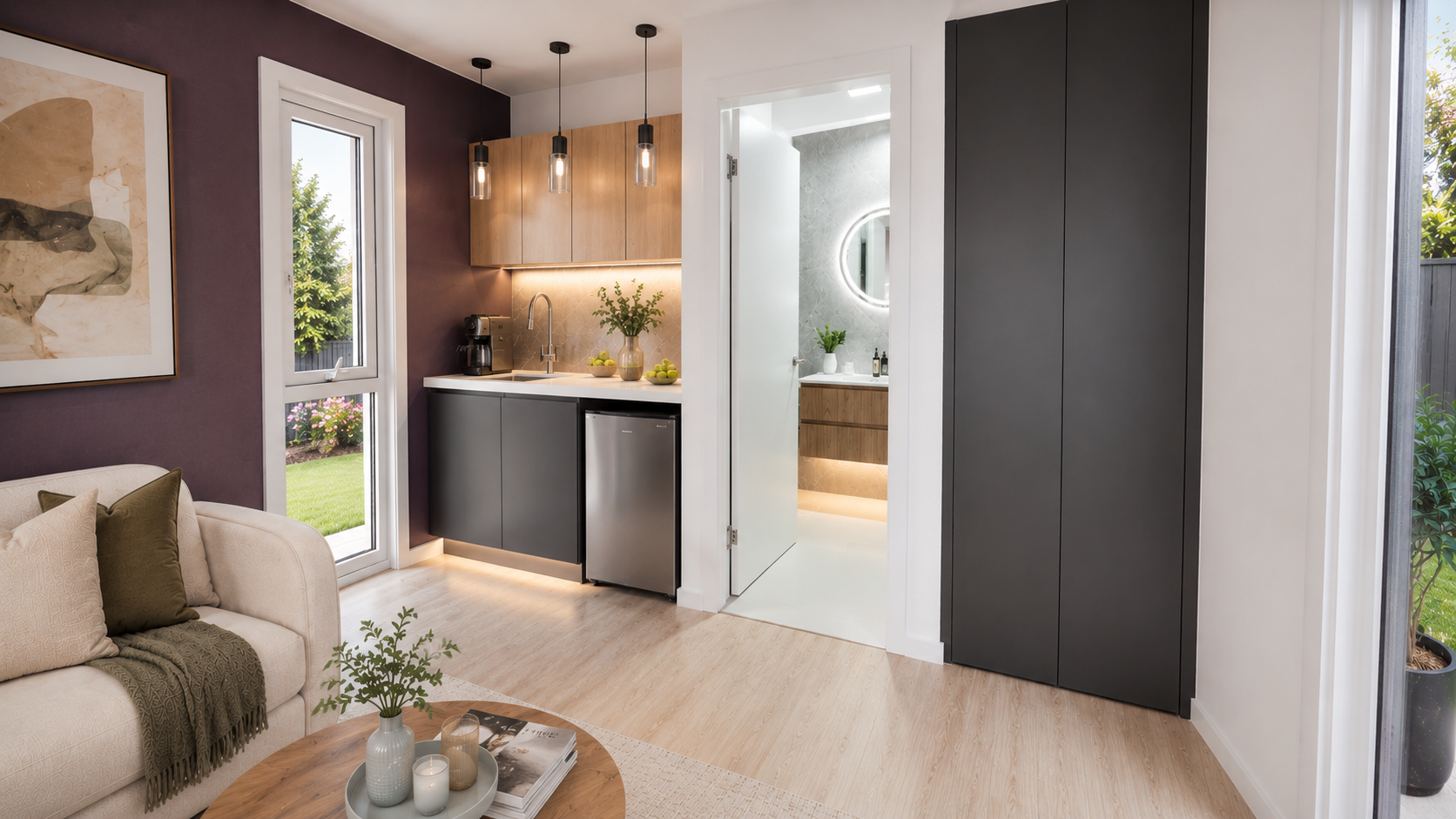

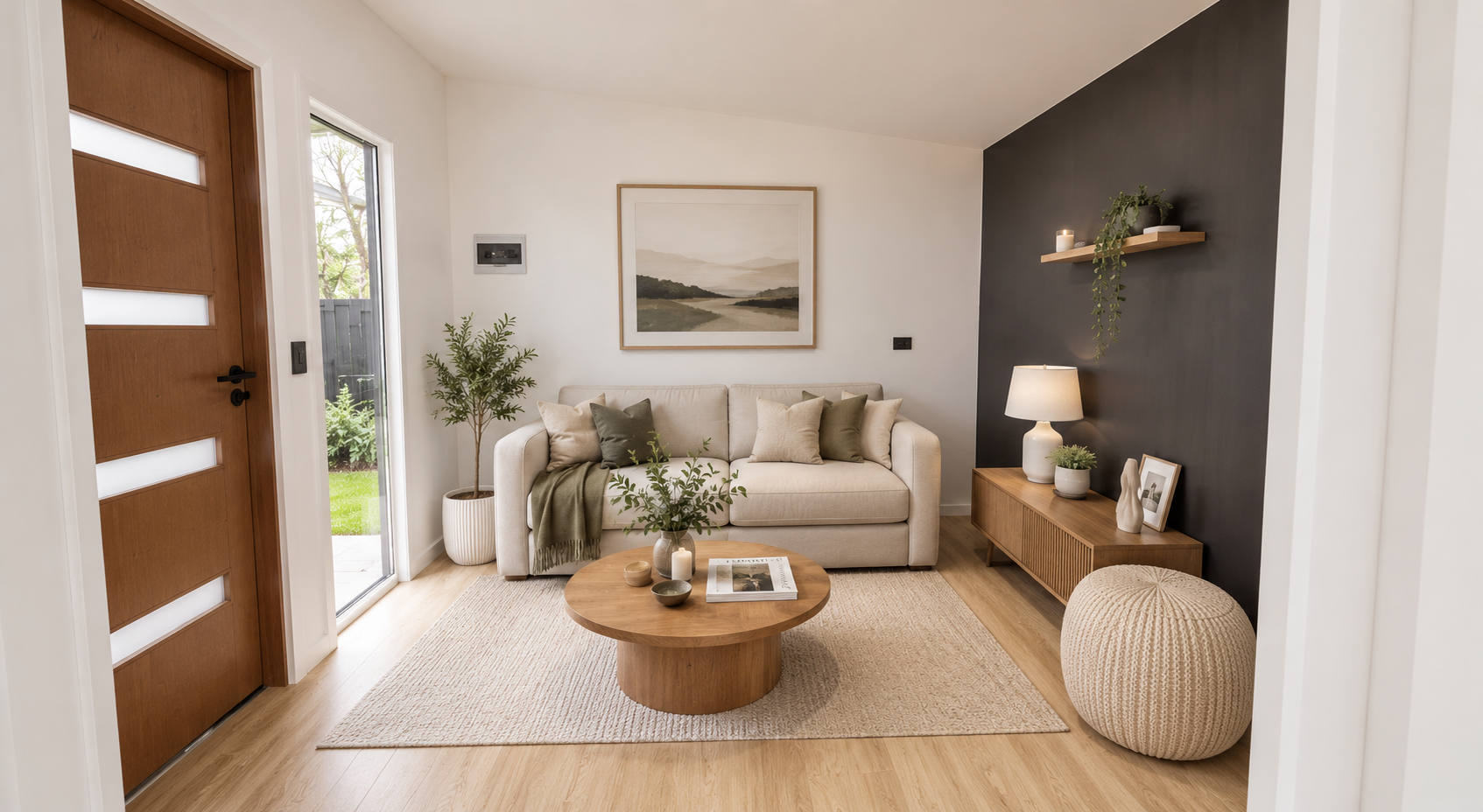

Inside the Byron

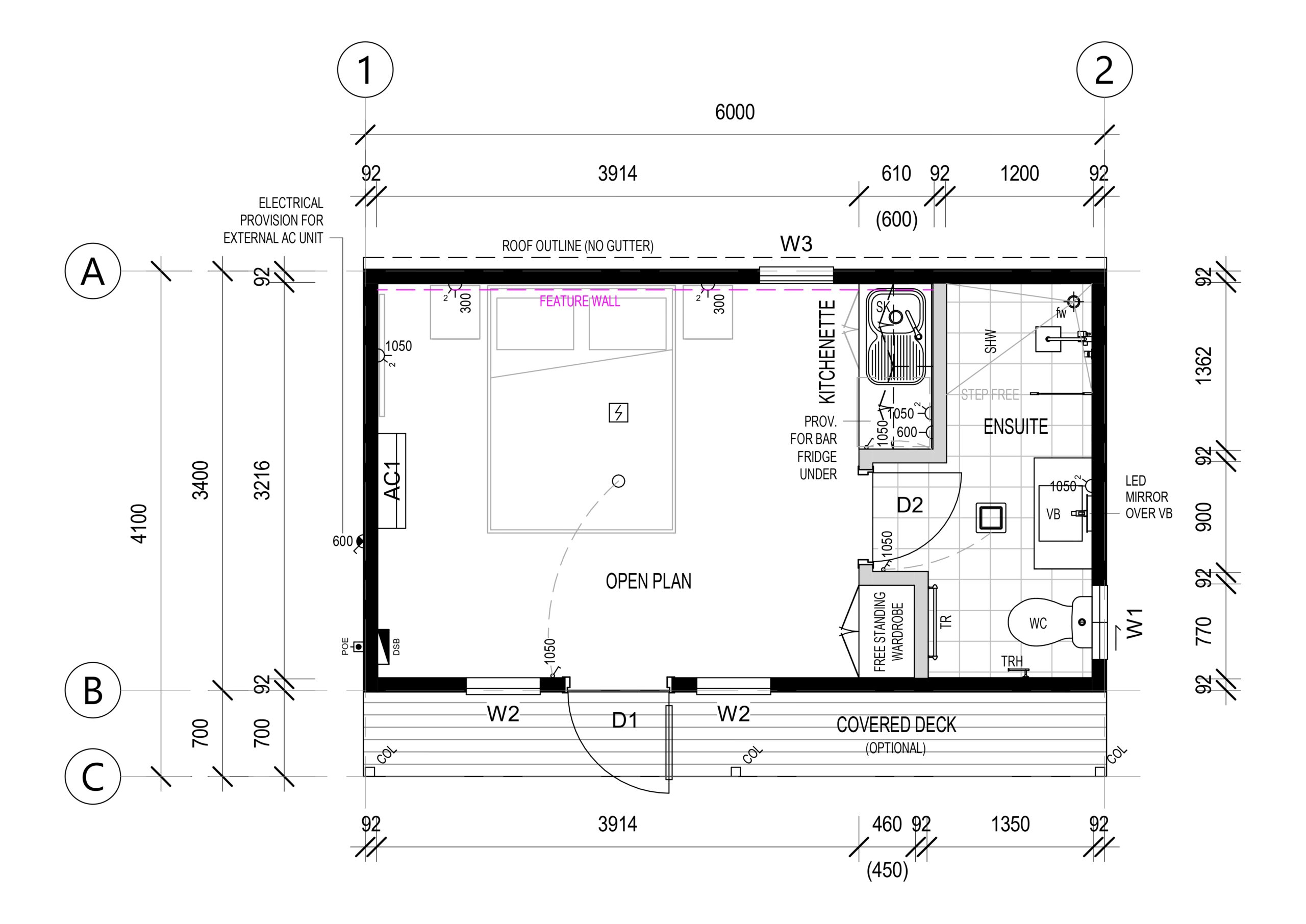

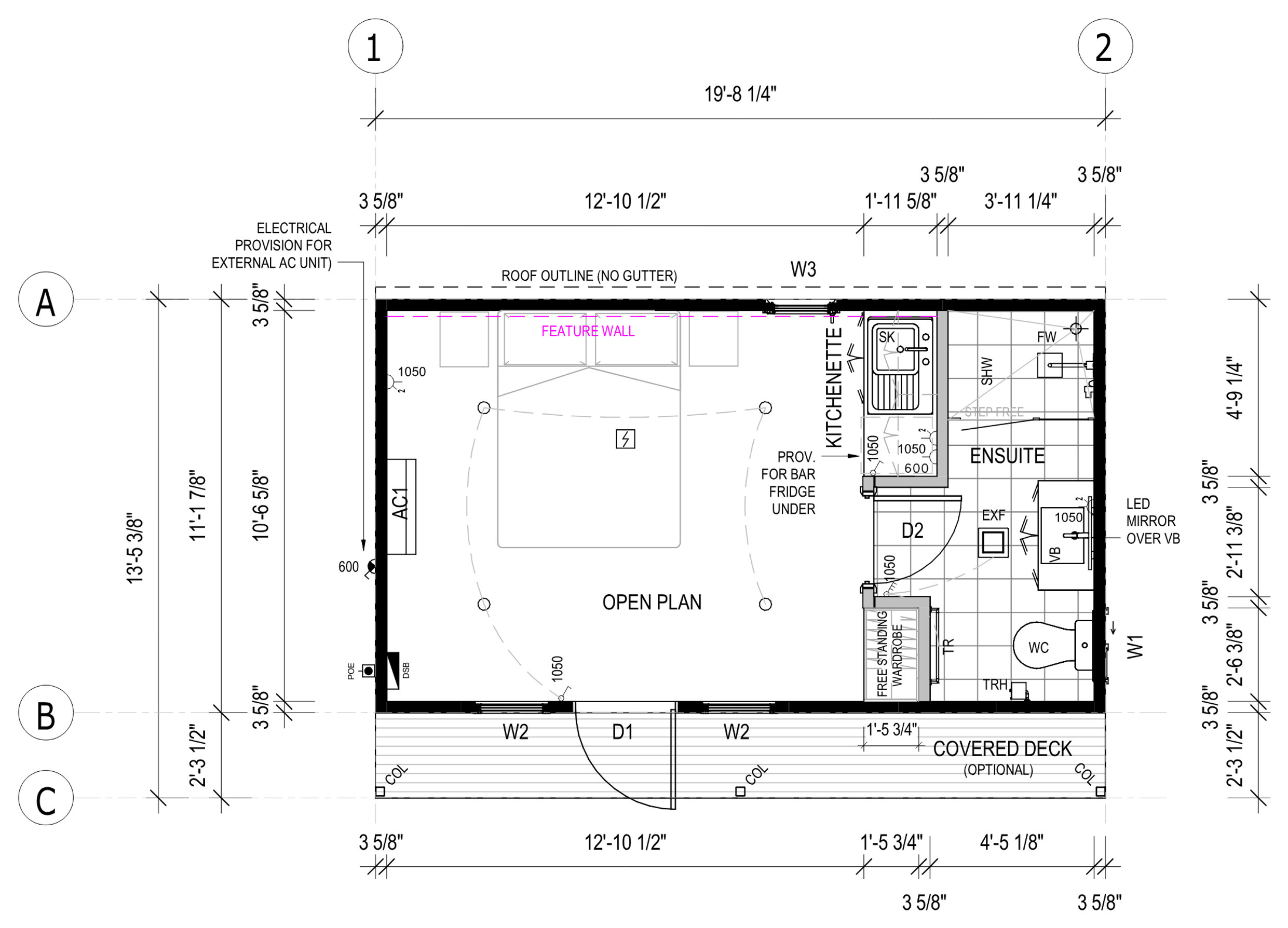

Floor Plan

Layout & dimensions

Specifications

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 92mm (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)
